PortServer TS M MEI
Serial Server with Internal Modem. with one v.90/v.92 modem port
- Device server with one v.90/v.92 modem port
- Access remote devices and IP networks

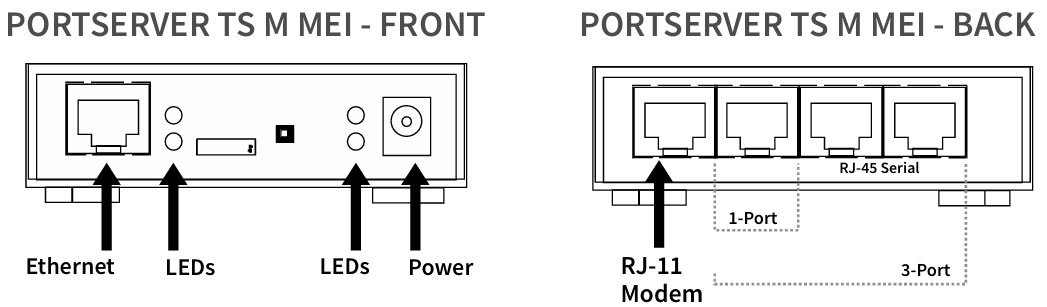

- 3 serial ports with internal modem
| Item | PortServer TS 3 M MEI | |
|---|---|---|
| Features | ||
| Management | HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool | |
| Protocols | UDP/TCP, PPP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support | |
| Software | Supports Digi’s Realport® COM port redirector | |
| Security | SSHv2, Static routing, RIP 1 | |
| Status LEDs | Link, Power | |
| Operating Systems | AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent | |
| Dimensions (L x W x D) | 13.34 cm x 8.46 cm x 2.42 cm, Weight 2.25 oz (64.00 g) | |
| Other | DIN rail mounting options, Full modem and hardware flow control, Port buffering, RJ45-DB-9F console adapter included for optional serial configuration | |
| Interfaces | ||
| Serial | ||
| Ports | 3 RS-232/422/485 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | |
| Modem | ||
| Ports | 1 RJ-11 | |
| Modem Type | Internal v.90/v.92 | |
| Ethernet | ||
| Ports | 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex | |
| Power Requirements | ||
| Power Input | 9-30 VDC | |
| Power Supply (included) | North America: 12 VDC/.5A max out; 120VAC in (wall mount) International: 12 VDC/.5A max out; 100-240VAC in (small brick) | |
| Power Consumption | Typical: 4 W; Max: 6 W | |
| Product Surge Protection (ESD) | 4 kV burst (EFT) per EN61000-4-4, 2 kV surge transient per EN61000-4-5 | |
| Environmental | ||
| Operating Temperature | -0° C to +50° C (32° F to 122° F) | |
| Relative Humidity | 5% to 90% (non-condensing) | |
| Ethernet Isolation | 1500 VAC min per IEEE802.3/ANSI X3.263 | |
| Serial Port Protection (ESD) | 15 kV human body model | |
| Approvals | ||
| Safety | UL60950, CAN/CSA C22.2 No. 60950, EN60950 | |
| Emissions/Immunity | CE; FCC Part 15 (Subpart B, Class B); EN55022 Class B; EN61000-3-2, 3; EN55024 | |
PortServer TS M MEI serial server offers Ethernet and RS-232/422/485 serial connections, with the addition of an internal modem. The one- and three-port serial servers are ideal for applications requiring both IP networking and standard phone line dial-up connectivity for remote access to serial devices.
The embedded modem adds another level of flexibility to the PortServer TS serial server family. It allows remote hosts to dial-in to a serial device attached to the Digi serial server, as well as the serial device to dial-out to a remote location using a standard phone line. The modem helps to create a PPP connection (TCP/IP connection over modem) so that applications and devices can communicate via an IP network, even when the primary LAN or WAN is not available. This allows users from a central location to maintain access to remote serial devices.
Other applications for PortServer TS M MEI include remote site console management for small branches and remote log-in via a TCP/IP network for easy troubleshooting, monitoring, configuration or control.
