PortServer TS MEI Hardened
Hardened, Rugged Serial Servers for Outdoor Extended Temperatures
- Outdoor extended temperature tolerance (-35° C to +74° C)
- Device servers with conformal coated circuit boards
- NEMA TS 2 certification, Class 1 Div 2
- 1, 2 or 4 switch-selectable serial ports (RS-232/422/485)
| Specifications | PortServer TS H MEI | PortServer TS Hcc MEI | PortServer TS Haz MEI |
|---|---|---|---|
| Features | |||
| Management | HTTP/HTTPS, PPP, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool | ||
| Protocols | UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support | UDP/TCP, Supports multiple unicasts, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support | UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support |
| Software | Supports Digi’s Realport® COM port redirector | ||
| Security | SSHv2, SSL/TLS | ||
| Extended Safety | N/A | Conformal coated circuit board, NEMA TS 2 compliant, Screw terminal connector for power | Conformal coated circuit board, Screw terminal connector for power, Ships in "Latency Mode & TCP Keepalive" setting |
| Status LEDs | Link, Power, Activity, Status | ||
| Operating Systems | AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent | ||
| Dimensions (L x W x D) | 5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm) | ||
| Weight | 2.25 oz (64.00 g) | ||
| Other | Full modem and hardware flow control, Modem emulation, Port buffering, RJ45-DB-9F console adapter included for optional serial configuration, Wall mount kit included | Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration | |
| Interfaces | |||
| Serial | |||

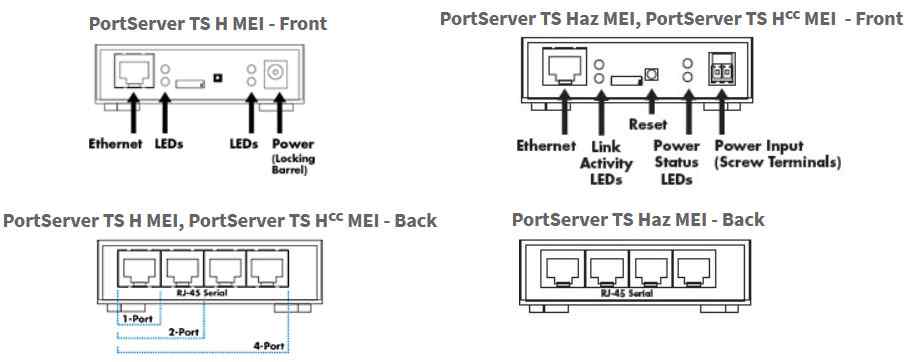

| Ports | 1/2/4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | |
| Ethernet | |||
| Physical Layer | 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex | ||
| Power Requirements | |||
| Power Input | 9-30 VDC | 9-30 VDC @ 0.5 Amps max (screw terminal power) | 9-30 VDC @ 0.5 Amps max (screw terminal power) |
| Power Supply | 12 VDC extended temperature power supply sold separately; Bare-wire “pigtail” power connector included | 9-30 VDC @ 525 mA max | Optional 12 VDC extended temperature power supply sold separately |
| Power Consumption | Typical: 4 W; Max: 6 W | ||
| Surge Protection | 4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5 | ||
| Environmental | |||
| Operating Temperature | -35° C to +74° C (-31° F to 165° F) | ||
| Storage Temperature | -40° C to +85° C (-40° F to +185° F) | ||
| Relative Humidity | 5% to 95% (non-condensing) | ||
| Ethernet Isolation | 1500VAC min per IEEE802.3/ANSI X3.263 | ||
| Serial Port Protection (ESD) | 15 kV human body model | ||
| Approvals | |||
| Safety | UL/CL60950, IEC60950, CB | Class 1 Division 2, UL/CL60950, IEC60950 & CB | Class 1 Division 2, UL/CL60950, IEC60950 |
| Emissions/Immunity | CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, VCCI V-3/99 .05 | ||
PortServer TS MEI Hardened family of serial servers is designed for serial port expansion where environmental hazards demand extended safety features and operating tolerances. Extended operating temperature (-35° C to +74° C), conformal coated circuit board, NEMA TS 2 and Class 1 Div 2 certifications make these rugged serial servers ideal for use in outdoor applications. Digi's patented RealPort® COM port redirector creates a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

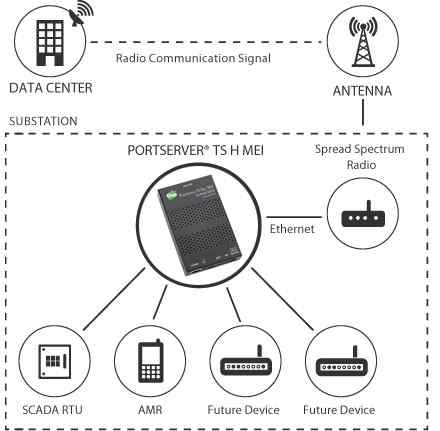

PortServer TS H MEI model is designed for serial-to-Ethernet connectivity in utility plants, pipelines, traffic management facilities and other remote locations requiring extended operating temperatures.
Designed to meet NEMA TS 2 and other unique requirements in traffic management installations, the PortServer TS Hcc MEI* model is ideal for network-enabling and remotely managing variable message signs, loop detectors, ramp meters or any RS-232/422/485 serial device. Specialized features include conformal coated PCA for moisture and corrosion protection, screw terminal power connector for durable and reliable power feed, and extended operating temperature tolerance.
PortServer TS Haz MEI serial server offers a conformal coated PCA, extended temperature tolerance and the ability to safely perform in flammable environments (Class 1, Division 2 certified). It is ideal for serial port expansion in factory automation and utility management (gas, electric and water) applications.
