AD-WISE-4210-AP

Proprietary LPWAN Wireless to Ethernet AP

Anewtech Systems Advantech Proprietary LPWAN IoT Wireless Module AD-WISE-4210-AP
  • Proprietary LPWAN (Sub-G) wireless technology
  • Support MQTT & Modbus/TCP protocol
  • Wireless to ethernet access point
  • Longer communication range than 2.4GHz
  • Better penetration through concrete and steel than 2.4GHz
Datasheet
AD-WISE-4210-AP.pdf
Product Specification
General
CertificationCE (RED), FCC, IC, NCC, TELEC
Configuration InterfaceEthernet: RJ-45 (for configuration and data query); RS-485: Data+, Data- (for query node data)
Battery Life625bps: 5 years with 10 minute update rate; 50kbps: 5 years with 1 minute update rate
Dimensions (W x H x D)70 x 112 x 38 mm
LED IndicatorsStatus, Error, Tx, Rx, Battery/Signal Level
MountingDIN 35 rail, wall, and stack
Power Input10 ~ 50 VDC
Protocol
ApplicationHTTP, HTTPS, SNTP, DHCP
MessagingModbus/TCP, Modbus/RTU, REST, MQTT
OthersRESTful Web API in JSON format, Web Server in HTML5
TransportTCP, UDP
Environment
Operating Humidity5 ~ 95% (non-condensing)
Operating Temperature-25 ~ 70°C (-13~158°F)
Wireless Interface
Data Rate625bps, 50kbps
Frequency Band923MHz (920.60~924.60), BW: 400kHz; 868MHz (865.00~869.00), BW: 400kHz; 433MHz (433.05~434.55), BW: 300kHz
IEEE Standard625bps: IEEE 802.15.4g FSK Modulation; 50kbps: IEEE 802.15.4g GFSK Modulation
Network Capacity64 clients
Outdoor Range625bps: 5 km with line of sight (with 2 dBi antenna); 50kbps: 2 km with line of sight (with 2 dBi antenna)
TopologyStar

AD-WISE-4210 wireless sensor node and AP series utilize proprietary LPWAN (Low-Power Wide-Area Network) wireless communication technology. Comparing with traditional 2.4G Wi-Fi, Sub-1GHz LPWAN can provide a better connection and eliminate network interference.

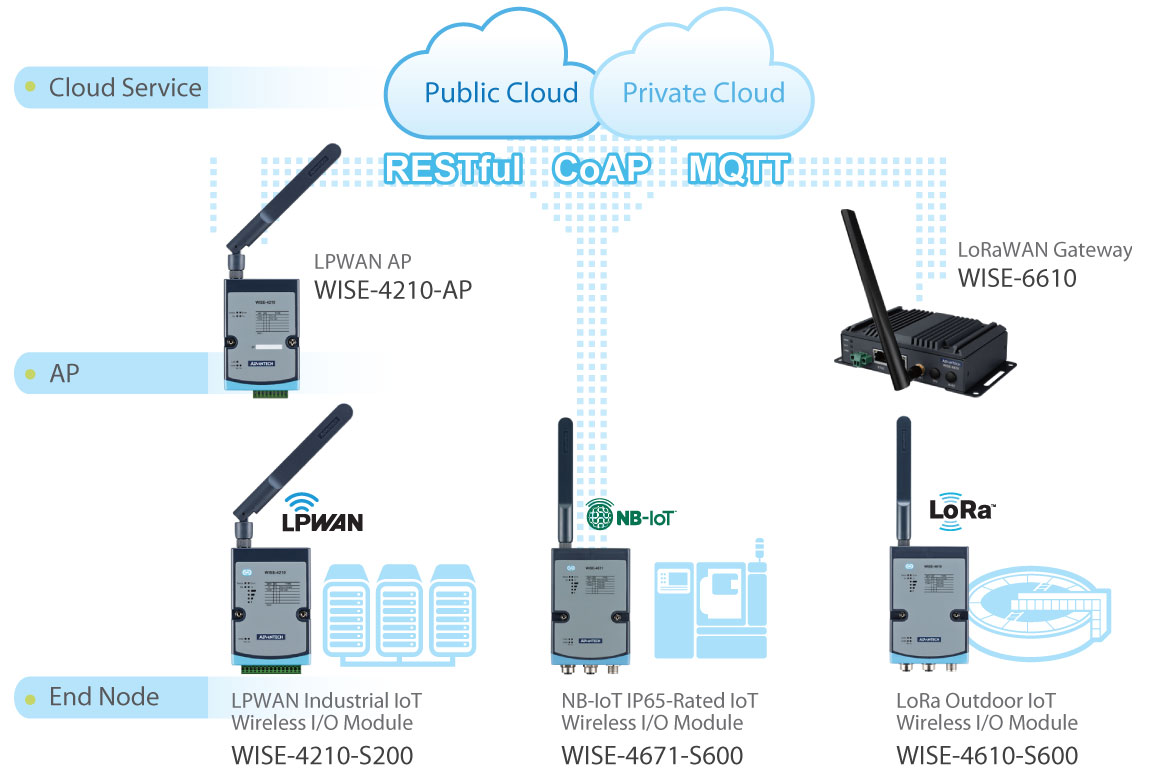

AD-WISE-4210-AP can organize an LPWAN network with 64 WISE-4210-S200 series nodes paired by star topology. Moreover, AD-WISE-4210-AP supports MQTT and RESTful API IoT protocol for cloud integration as well as pre-integrating Azure IoT Hub for automatically pushing data to the cloud without requiring any gateway.

Anewtech sensor-device-lpwan_lora Advantech ADAM I/O Module LPWAN/SUB-G Wireless I/O Module
Proprietary LPWANPrivate LoRa
Anewtech sensor-device-lpwan Advantech ADAM I/O Module LPWAN/SUB-G Wireless I/O ModuleAnewtech LoRa-sensor-node-factory Advantech ADAM I/O Module LPWAN/SUB-G Wireless I/O Module
  • Compact size with cost-effective design
  • Less interference and longer range for indoor applications
  • 5 year life span with 3.6 V AA battery
  • Integrated with public and private cloud services
Anewtech Advantech ADAM I/O Module LPWAN/SUB-G Wireless I/O Module
  • IP65-rated protection against water ingress
  • 5 km long-range communication
  • Solar-rechargeable battery
  • GPS location tracking
Anewtech sensor-device-lpwan_lora Advantech ADAM I/O Module LPWAN/SUB-G Wireless I/O Module
How Can LPWAN and LoRa Drive IoT?
Factory Environment MonitoringSewage Discharge Monitoring
  • Easy to achieve LPWAN signal coverage
  • Improved signal and lower interference than 2.4 GHz signals
  • Cable-less design
  • AD-WISE-4210-AP supports Modbus, RESTful, and MQTT for integration with public or private cloud
  • LoRa signal coverage for sewage water treatment plants or industrial campuses
  •  IP65 housing and GPS support for outdoor installation
  • Solar panel rechargeable battery for continuous monitoring
