AD-WISE-4250
2.4G/5G Wi-Fi IoT Wireless I/O Module
- Wi-Fi Dual band 2.4/5 GHz up to 802.11 a/b/g/n/ac
- Support interchangeable I/O and Sensor module and easily configured with web UI
- MQTT, Modbus/TCP, SNMP, SNTP, TCP/IP, HTTP, HTTPS, UDP, and DHCP protocols supported
- Support smart roaming function
- Supports X.509 and up to WPA3 /TLS1.3
- UDP based AES-128 encrypted wireless P2P (Peer to Peer) function for multiple modules
- 10000+ data logger with SNTP/RTC time sync and WDT auto connection recovery
| Model | WISE-4250-A |
| Wireless Communication | |
| Standard (Technology) | WIFI |
| Frequency Band | IEEE 802.11 a/b/g/n/ac 2.4/5 (GHz) |
| Protocol | Modbus/TCP, TCP, UDP, HTTP, HTTPS, DHCP, MQTT, SNTP, Modbus/RTU, REST |
| Power Requirements | |
| Input Voltage | 10~50 VDC |
| Protection | |
| Short Circuit Protection | Yes |
| Hardware | |
| Power Consumption | 1.2 W @ 24 VDC |
| Watchdog Timer | 1.6 s |
| LED Indicators | Status, Line-power, Wireless Com, Initial/Normal, Signal Strength |
| Certification | CE, FCC, RoHS, TELEC, NBTC |
| Environment | |
| Operating Temperature | -25~70 °C (-13~158 °F) |
| Relative Humidity | 20~95% RH (non-condensing) |
| Storage Temperature | -40~85 °C (-40~185 °F) |
| Storage Humidity | 0~95% RH (non-condensing) |
| Mechanical | |
| Enclosure | PC |
| Mounting | DIN-rail, Wall, Pole, Stack |
| Dimension (W x H x D) | 70 x 102 x 38 mm |
| Weight (Net) | 0.5 kg (1.1 lb) |
This series is dual band based, paired with interchangeable I/O and sensors and integrated with IoT data acquisition, processing, and publishing. Data can be directly from edge to cloud with higher security and no loss functions. All Wi-Fi channels can be flexibly connected with roaming function.
WISE-4200 Industrial IoT Wireless I/O Modules
The WISE-4200 series comprises sensor-integrated WSNs that offer modularized sensor and I/O interface configuration options. With this series, data can be easily collected via a single node without additional development or assembly.
WISE-4200 nodes are suitable for environmental monitoring and management applications in factories, pipelines, data centers, and warehouses.
Built-In Sensor and I/O
Combination of I/O and sensors makes it a ready-to-use node for various applications.
Battery-Powered
Utilizing LPWAN technology means that the WISE-4210 can be powered by 3.6-V AA lithium battery.
Flexible Mounting
DIN-Rail, wall and pole mounting enable fitting in any installation environment.
IoT Protocols
MQTT and RESTful web API in JSON format for IoT or cloud service integration.

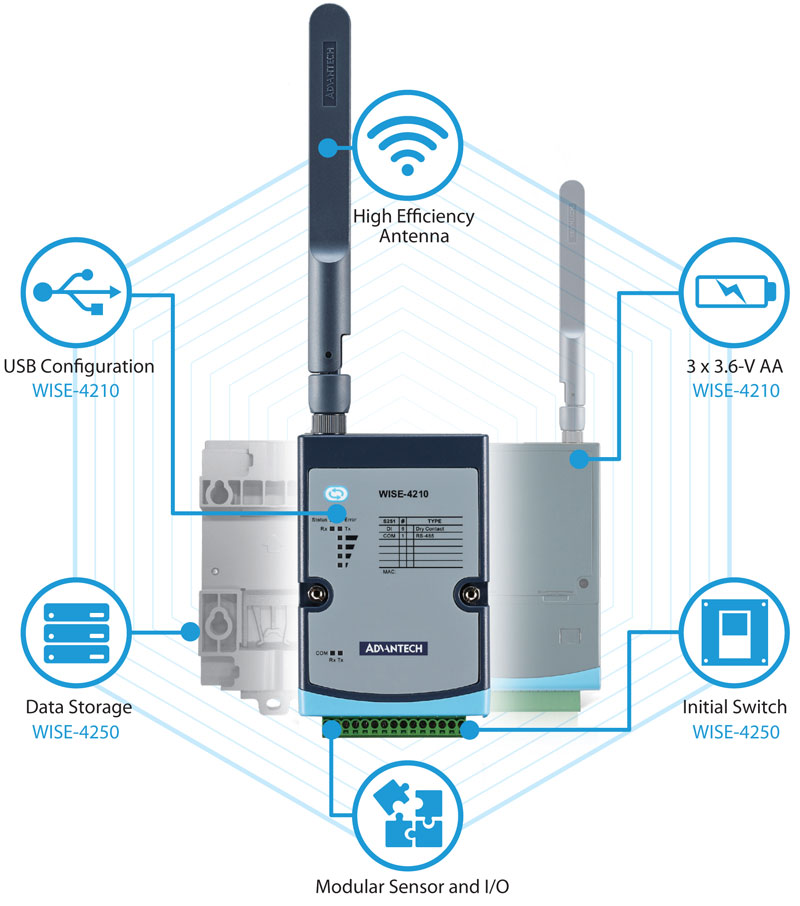

WISE-4210
LPWAN Industrial IoT Wireless I/O Modules
The WISE-4210 utilizes LPWAN technology to provide modularized nodes that can transmit data over long distances without interference.
With low power consumption and wide area communication features, this solution can provide coverage up to 2 km.
Sub-1-GHz LPWAN with 2-km line-of-sight communication
3 x 3.6-V AA lithium batteries for a 5-year lifetime
Easy to organize LPWAN data access via wireless access points
WISE-4250
WLAN Industrial IoT Wireless I/O Modules
Adopting Wi-Fi technology, the WISE-4250 is a modularized node that can be easily integrated into existing networks.
With the high compatibility and universality of Wi-Fi technology, this solution requires no extra infrastructure cost or implementation effort.
2.4/5-GHz IEEE 802.11b/g/n/ac WLAN for 110-m line-of-sight communication
Local logging of 10,000 samples with RTC time stamp and SNTP time synchronization
Access point mode with an HTML5 webpage for direct access and device configuration via mobile devices
