AMR Robot with Lift Solutions

AMR with lifting capacity up to 150kg payload, is reshaping the landscape of factory logistics by seamlessly handling the transportation of heavy materials with shelving.

Anewtech-Systems-Intelligent-Delivery-Robot-Factory-AMR-lifter-lifting-trolly-robots

AMR robots with lifting solutions

AMR renowned for their high automation, safety, flexibility, and adaptability, are emerging as the favored choice in the factory logistics sector. Shelf lifting AMR, equipped with an intelligent task control scheduling (TSC) system, efficiently undertakes high-intensity material handling tasks, disrupting the traditional "search for goods" model and introducing the novel concept of "goods to people."

They can lift and deliver products with precision which adds an additional level of functionality to the AMR. When AMR equipped with a lifting solution arrives at a docking station, the advanced lifting mechanism enables effortless loading and unloading of goods, streamlining the transfer process to various destinations, such as assembly lines or storage areas. This integration eliminates manual handling, reducing the risk of errors and ensuring a smooth flow of operations.

Datasheet



Anewtech-Systems-Intelligent-Delivery-Robot-Factory-AMR-lifter-lifting-trolly

The 600kg heavy-payload industrial robots redefine the boundaries of industrial transport with their exceptional load capacity, high intelligence, and seamlessly integrated ecosystem, offering robust support for enterprises seeking automation and intelligent upgrades. The unique lifting function enables these robots to autonomously identify shelves and precisely perform lifting and placing operations. This facilitates end-to-end unmanned material handling from storage to production lines, significantly reducing labor costs while enhancing operational precision and safety.

Anewtech-Systems-intelligent-delivery-robot-factory-robot-amr-lift-heavyload width=
ItemsAMR with Lift Soltuions
Dimension WxLxH (cm)50 x 71 x 124
Shelf Size WxLxH (cm)66 x 70 x 35
Shelf is customizable
Max Load150kg
Velocity0.1~1.5m/s
Min passing space80cm
Slope≤8°
Localization AccuracyCentimetre Level
Network4G/wifi
Battery30Ah
Operation screen10.1 inch
Operation time Continuous working>10h
Charging hours5.5hr

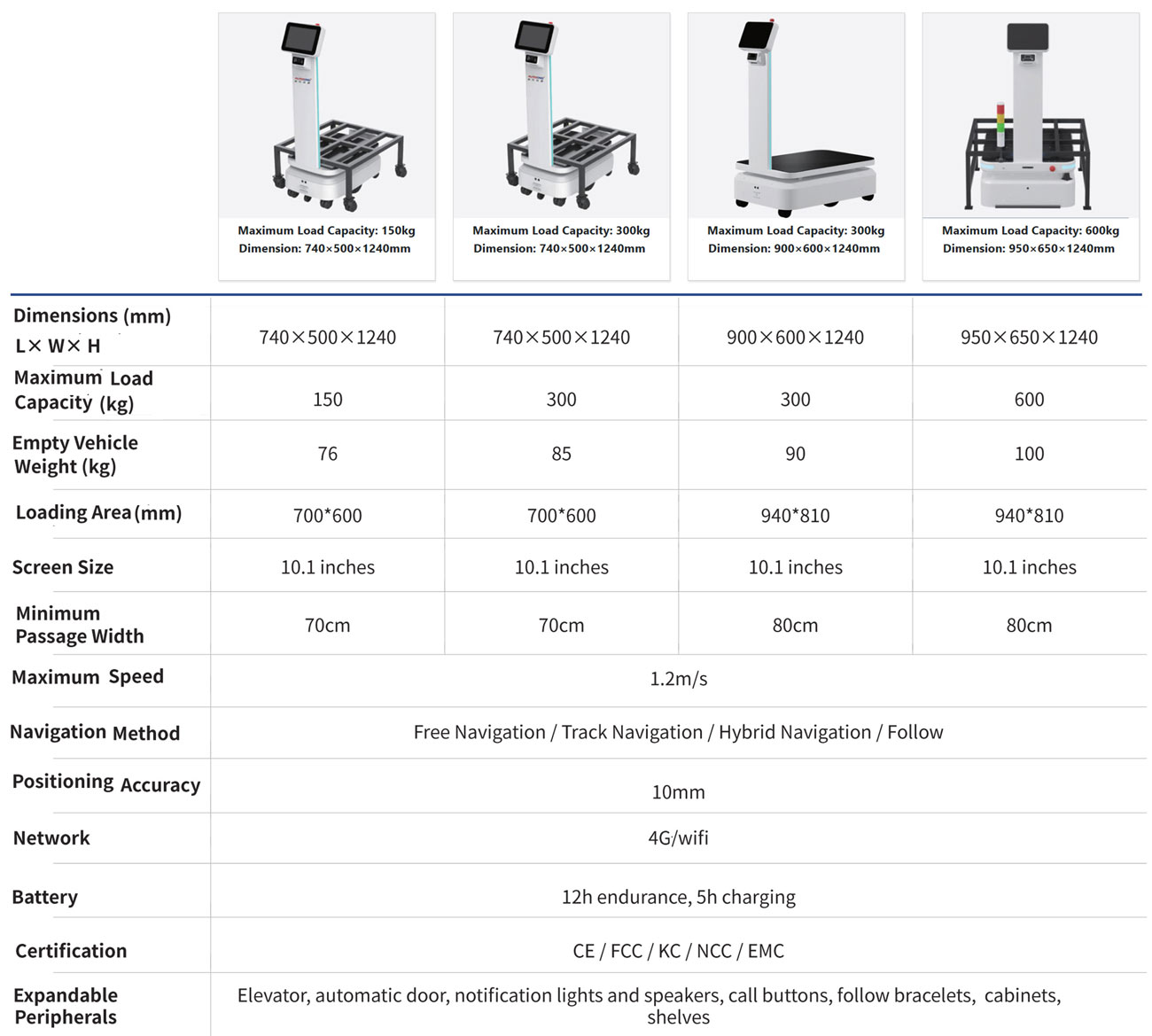

Lifting Robots

Intelligent Lifting robots have lifting functions, can autonomously identify shelves, and perform lifting operations, achieving unmanned material handling. Production System Integration: Supports quick integration with MES, ERP, WMS systems, and supports production system task assignment to robots.

Flexible Customization and Expansion

Anewtech-Systems-warehouse-Delivery-Robot-factory-delivery-robot-amr-lifting.

Anewtech-Systems-factory-delivery-robot-amr-delivery-robots-autoxing-lifting-robot-l150

Maximum Load Capacity: 150kg
Dimension: 740×500×1240mm

Anewtech-Systems-factory-delivery-robot-amr-delivery-robots-autoxing-lifting-robot-l300

Maximum Load Capacity: 300kg
Dimension: 740×500×1240mm

Anewtech-Systems-factory-delivery-robot-amr-delivery-robots-autoxing-lifting-robot-l300e

Maximum Load Capacity: 300kg
Dimension: 900×600×1240mm

Anewtech-Systems-factory-delivery-robot-amr-delivery-robots-autoxing-lifting-robot-l600

Maximum Load Capacity: 600kg
Dimension: 950×650×1240mm




Multiple Operation Modes, Simple Interaction

Anewtech-Systems-Factory-Delivery-Robot-AMR-factory-remote-call-pager

Robot Call Pager

Remote call robot and multi-point delivery

Anewtech-Systems-Factory-Delivery-Robot-AMR-factory-lift-integration-automatic-gate-handling

IoT Devices Integration

Seamless navigation through elevator, gate and automatic door handling

Anewtech-Systems-Factory-Delivery-Robot-AMR-factory-operation-screen-multipoint-delivery

Multiple Delivery Mode

A 10.1-inch operation screen for multiple delivery mode and setting

Highlights of AMR Robots with Lift Solutions

Autonomous Navigation, Intelligent Scheduling:

The robots require no QR code navigation and support various intelligent navigation modes. Under the unified scheduling of the TCS platform, the robots autonomously move between factory transport points, significantly enhancing transfer efficiency and providing users with a comprehensive mobile robot solution.

Improve Handling Efficiency:

Navigating through narrow passages and irregular terrains, the robots showcase the ability to calculate optimal routes autonomously and employ obstacle avoidance, thereby improving overall handling efficiency.



Agile Obstacle Avoidance, Adaptability:

Without the need for QR code navigation, the robots possess multiple obstacle avoidance features, capable of handling unforeseen circumstances to ensure the safety of both the robots and personnel.

Automatic Charging, Uninterrupted Operation:

The robots exhibit flexible endurance, supporting both automatic and manual charging methods, ensuring continuous execution of material handling tasks.



Large Payload Capacity of 150kg:

Particularly suited for the manufacturing industry, the robots effortlessly handle the efficient transfer of materials and production line supplies.

Compact Size, Extensive Range, Effortless Lifting:

The robots support autonomous recognition of shelf positions, swiftly and safely moving to the center of the shelf to ensure stable lifting during transportation.



AMR with Lifter Applications



Anewtech-systems-delivery-robots-amr-lifter-factory-robot-lifting-delivery-robot
Anewtech-systems-delivery-robots-amr-lifter-factory-robot-lifting-delivery-robot
Anewtech-systems-delivery-robots-amr-lifter-factory-robot-lifting
Anewtech-systems-delivery-robots-amr-lifter-factory-robot-lifting-shelf

Anewtech-Systems-FActory-Delivery-Robot-lifting-AMR-factory
Anewtech-Systems-FActory-Delivery-Robot-lifting-AMR-factory-AMR
Anewtech-Systems-FActory-Delivery-Robot-lifting-AMR-factory-lifting-AMR-delivery-robot
Anewtech-Systems-Factory-Delivery-Robot-lifting-AMR-factory-lifting-AMR-robots.

Anewtech-Systems-Intelligent-Delivery-Robot-Factory-AMR-lifter-lifting-trolly-robot

AMR with lift solutions automate the transfer of semi-finished products between factory production lines. Simultaneously, they facilitate intelligent communication between production lines, injecting a greater level of intelligence and efficiency into the manufacturing process. This technology not only enhances material handling efficiency but also alleviates the strain on human resources, infusing innovation and vitality into industrial transformation.
