I-AFL4-W13-EHL

13.3” Fanless Panel PC with Intel® Celeron® Processor J6412

Anewtech Systems Industrial Fanless Panel PC IEI Industrial Touch computer I-AFL4-W13-EHL
  •  Intel® Elkhart Lake Platform
  • New narrow bezel design
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Support WiFi 6E and Bluetooth® 5.2
Datasheet
Product Specification
Anewtech-Systems-Industrial-Panel-PC-Touch-computer-I-AFL4-W12-EHL-ieiAnewtech-Systems-Industrial-Panel-PC-Touch-computer-I-AFL4-W13-EHL-iei-fanless-panel-pc
System
CPUIntel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
On-board Memoryon-board dual-channel 8GB LPDDR4x
Storage1 x M.2 2242 M-key (PCIe Gen3 x1 or SATA)
Communication
Wireless2T2R Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Support 2.4/5/6GHz ,Bluetooth v5.2
I/O Interface
Ethernet2 x 2.5GbE LAN via Intel® I225V
Expansion1 x M.2 M-key 2280 (PCIE Gen3 x2)
Audio CodecRealtek ALC 888S
Power
Input12V DC
Environment
Operating Temperature-10ºC ~ 50ºC
Safety & EMCCE, FCC Class A
Humidity10% ~ 95%, non-condensing
Storage Temperature-20ºC ~ 60ºC
Physical Characteristics
ColorBlack+Silver
MountingVESA 75, Wall, Stand and Arm
Dimensions (LxWxH) (mm)327.70 x 203.33 x 47.50
LCD
Size13.3” (16:9)
Resolution1920 x 1080
Brightness (cd/m2)350 nits
Contrast Ratio800 :1
LCD Color16.7M
Pixel Pitch (mm)0.153x 0.153
Viewing Angle (H-V)170°/170°
Backlight MTBF50,000 hours
Touch
Touch ScreenMulti-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: 7H
Touch ControllerEETI 80 series
Other Features
Audio1 x AMP 1.2W (internal speaker)

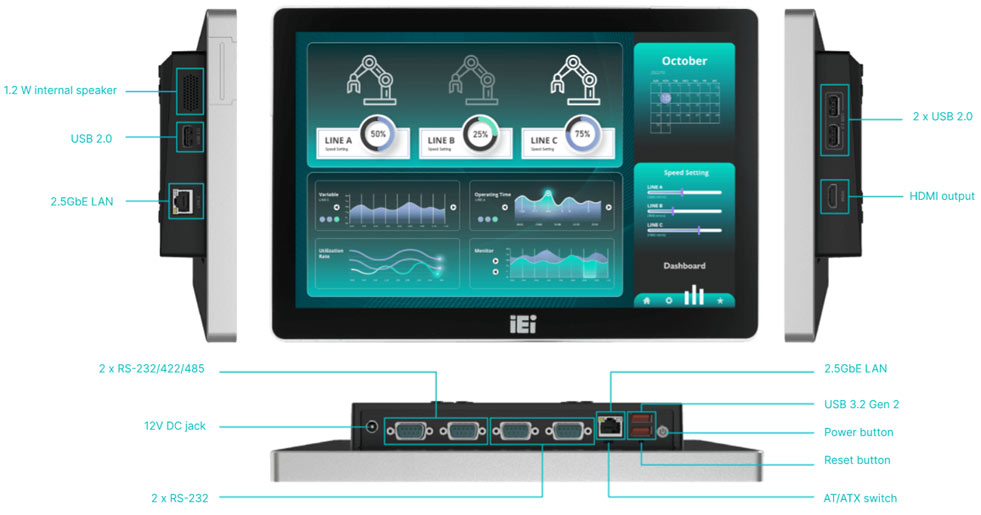

I/O Interface
I/O Interface1 x AT/ATX switch
1 x DC Input Jack
1 x HDMI (up to 3840*2160 @30Hz)
2 x LAN (Intel® I225V 2.5GbE controller)
1 x Power Switch
1 x Reset Button
2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
3 x USB 2.0
2 x USB 3.2 Gen2x1 (10Gb/s (Type A))
OS Support
OS SupportWindows 10 IoT
Linux
