WM-R15IAD3S-MRA3FP
15" Intel® Core™ i5-1335U Flat PCAP ECDIS Marine Panel PC
- 15”1024 x 768 PCAP touchscreen,Flat PCAP ECDIS Marine Panel PC
- 5th Gen. Intel® Core™ i5-1335U @ 2.20GHz
- Edge-to-edge narrow bezel design and fanless cooling system
- Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
- Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNV-CG-0339, IACS E10
Datasheet
Product Specification
| Display | |
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen (AR Coating) AG film (Optional) AR Glass (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 2500:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| System Specification | |
| Processor | Intel® Core™ i5-1335U 3.4GHz (up to 4.60 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45 |
| Video | 1 x HDMI (Optional) |
| Front Control | Power, Brightness +, Brightness -, Menu , Function Key (Default setting: ECDIS Mode) |
| Indicator | Day Mode , Dusk Mode, Night Mode |
| DIDO | 8 Channel Isolated Digital Input/Output (Optional) |
| NMEA | 4 x NMEA 0183 Port (Optional) |
| Mechanical | |
| Dimension | 363 x 312 x 67.5 mm |
| Cut out | 338 x 288mm |
| Weight | 5.8 kg |
| Mounting | VESA mount , Panel mount (Optional) |
| Enclosure | Anodized Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Manual 12V AC to DC Adapter (with 3 pin Terminal Block) Power Cord M4 x 30 Black Screws Bolts M4 x 15 Sliver Screws Bolts |
| Optional Accessory | Four 5 Pin Terminal Block 3.81 (Phoenix Type) *For NMEA port (Optional) |
| Power | |
| Power Rating | 24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
| Consumption | 55W (Typical) |
ECDIS Marine Panel PC
ECDIS Marine Panel PC Series combines precision, durability, and compliance to meet the evolving demands of modern maritime navigation. With features like advanced color calibration, rugged design, seamless connectivity, and adherence to international marine standards, these panel PCs deliver unmatched reliability for safe and efficient operations at sea.
WM-R15IAD3S-MRA3FP
15" Intel® Core™ i5-1335U Flat PCAP ECDIS Marine Panel PC
15" Intel® Core™ i5-1335U Flat PCAP ECDIS Marine Panel PC

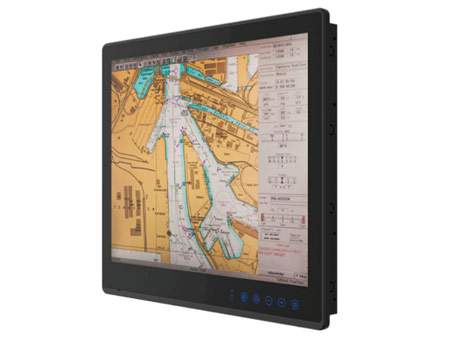

WM-R19IAD3S-MRM2FP
