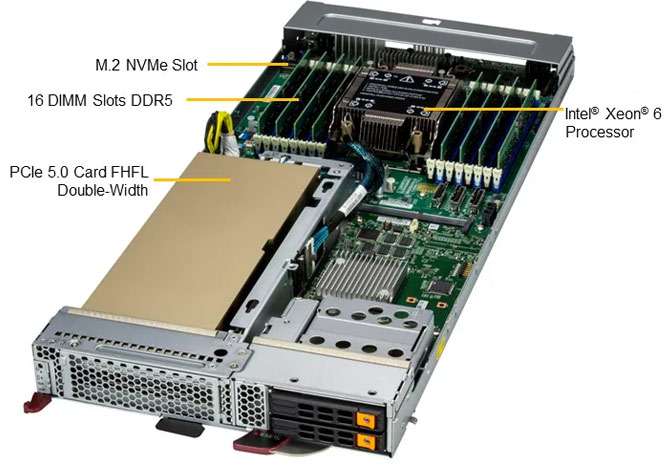

SBI-612B-1C2N
70 servers per 42U rack. Single Socket E2 (LGA-4710), Intel® Xeon® 6 processors
- 70 servers per 42U rack
- Single Socket E2 (LGA-4710), Intel® Xeon® 6 processors
- Supports 16x DDR5 ECC RDIMM/RDIMM 3DS (up to 6400MT/s 1DPC)
- 2 Hot-swap U.2 NVMe/SAS
- HW RAID 0 and 1 support with Broadcom 3108
- Dual-port 25G Ethernet (LOM)
- Expansion slot for Ethenret mezzanine card and for standard PCIe card
- Liquid cooling solution is available
Key Applications
- Enterprise Applications
- Cloud, virtualization, financial, EDA
- Engineering/scientific research
- High Performance Computing
Product Specification
| Product SKU | |
| SuperBlade Sled | SBI-612B-1C2N |
| Motherboard | MBD-B14SBE-CPU-25G |
| Processor (per Node) | |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores |
| GPU (per Node) | |
| Max GPU Count | Up to 1 double-width or 2 single-width GPU(s) |
| System Memory (per Node) | |
| Memory Capacity | 16 DIMM slots (2DPC) Max Memory: Up to 4TB 6400MT/s ECC DDR5 RDIMM |
| On-Board Devices (per Node) | |
| Chipset | System on Chip |
| Network Controllers | Onboard Dual 25G Ethernet 1 expansion slot w/ optional mezzanine cards |
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust |
| Graphics | Aspeed AST2600 |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash EEPROM |
| Dimensions | |
| Height | 9.75" |
| Width | 1.75" |
| Depth | 23.5" |
| Weight | 12.1 lbs (5.49 kg) |
| Available Colors | Metalic Silver with Black Drive Bays |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED UID Network Activity LED Fault LED |
| Expansion Slots (per Node) | |
| PCIe | 2 PCIe Gen5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards |
| Drive Bays / Storage (per Node) | |
| Hot-swap | 2 front-end hot-swap 2.5" NVMe/SAS drive bay(s); HW RAID 0 & 1 with Broadcom 3108 |
| M.2 | 1 M.2 2280/22110 NVMe/SATA3 drive (onboard) |
| Input / Output | |
| TPM | 1 TPM Header |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
6U SuperBlade®: Memory-Optimized Multi-Node Architecture for EDA and Enterprise Applications
- 100 servers per rack (Up to 28,800 CPU cores)
- 6U enclosure with 10 single-wide or 5 double-wide servers, sharing power supplies, cooling fans, CMMs, and Ethernet switches
- 1 or 2 Intel® Xeon® 6700 series processors with E-cores - up to 288 cores per node
- Support for DDR5-6400 with 32 DIMMs in DP or 16 DIMMs in UP
- Up to 10 NVMe SSDs
- Up to 4 GPUs or network cards
- 400G IB or Ethernet (PCIe 5.0 x16 slots), and up to 4x 25G Ethernet switches with 100G uplinks
- Reusable enclosure, power supplies, cooling fans, CMMs, and switches for future generation servers
- 96% efficiency, (N+N / N+1) redundant power supplies
- Direct liquid cooling option
6U SuperBlade® – 10/5 UP Nodes in 6U
SBI-612B-1C2N
16 DIMMs, 2 SAS/NVMe, 1 M.2
SBI-612B-1NE34, SBI-612B-5NE34
16 DIMMs, 4 E3.S, 1 M.2
SBI-622B-1NE34, SBI-622B-5NE34
32 DIMMs, 4 E3.S, 2 M.2 via Adapter
SBI-622B-1NE38, SBI-622B-5NE38
32 DIMMs, 8 E3.S, 2 M.2 via Adapter
What’s New in Supermicro X14 Servers
New Intel® Xeon® 6 Processors
Higher core count for greater compute density
Faster memory bandwidth and new capabilities to extend capacity
EDSFF E1.S and E3.S NVMe support
Data Center Modular Hardware System (DC-MHS) support
