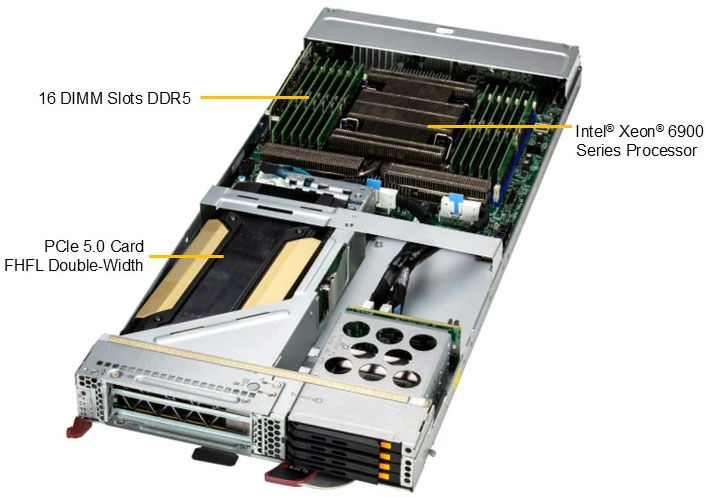

SBI-612BA-1NE34
70 servers per 42U rack. Single Socket BR (LGA-7529), Intel® Xeon® 6900 series processors
- 70 servers per 42U rack
- Single Socket BR (LGA-7529), Intel® Xeon® 6900 series processors
- Up to 12 DIMMs supporting up to 3TB 6400MT/s DDR5 RDIMM or 1.5TB 8800MT/s DDR5 MRDIMM
- 4 Hot-swap E3.S NVMe NVMe SSD, 2 M.2 NVMe SSD
- Dual-port 25G Ethernet (LOM)
- Expansion slot for Ethenret mezzanine card and for standard PCIe card
Key Applications
- Enterprise Applications
- High Performance Computing
- Engineering/scientific research
- Cloud, virtualization, financial, EDA
Product Specification
| Product SKUs | SBI-612BA-1NE34 |
| Motherboard | MBD-B14SBE-CPU-AP |
| Processor (per Node) | |
| CPU | Single Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Note | Up to 500W with D2C (Liquid Cooled) |
| System Memory (per Node) | |
| Memory Capacity | 12 DIMM slots Up to 3TB 6400MT/s DDR5 RDIMM or 1.5TB 8800MT/s DDR5 MRDIMM |
| On-Board Devices (per Node) | |
| Chipset | System on Chip |
| Network Controllers | Onboard Dual 25G Ethernet 1 expansion slot w/ optional mezzanine cards |
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust |
| Graphics | Aspeed AST2600 |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash EEPROM |
| Dimensions | |
| Height | 9.75" |
| Width | 1.75" |
| Depth | 23.5" |
| Weight | 12.1 lbs (5.49 kg) |
| Available Colors | Metalic Silver with Black Drive Bays |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED UID Network Activity LED Fault LED |
| Expansion Slots (per Node) | |
| PCIe | 2 PCIe Gen5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards |
| Drive Bays / Storage (per Node) | |
| Hot-swap | 4 Hot-swap E3.S NVMe SSDs |
| M.2 | 2 M.2 NVMe SSD |
| Input / Output | |
| TPM | 1 TPM Header |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature:10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:-30°C to 60°C (-22°F to 140°F) Operating Relative Humidity:8% to 80% (non-condensing) Non-operating Relative Humidity:8% to 90% (non-condensing) |
X14 6U SuperBlade®: AI & HPC Optimized Multi-Node Architecture
- 100 servers per rack (Up to 12,800 high performance CPU cores)
- 6U enclosure with 10 single-wide or 5 double-wide servers, sharing power supplies, cooling fans, CMMs, and Ethernet switches
SBI-612BA-1NE34
12 DIMMs, 6 NVMe SSDs, 2 GPUs
10 UP Nodes in 6U
SBI-612BA-5NE34
12 DIMMs, 6 NVMe SSDs , 4 GPUs
5 UP Nodes in 6U
