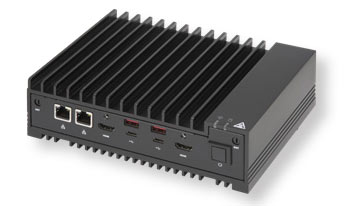

SYS-E100-13AD-E

Fanless Box PC with Intel i5-1245UE and supports 2x 2.5GbE LAN ports, 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b

Anewtech Systems Edge PC Supermicro Edge AI Server Supermicro Edge System SYS-E100-13AD-E
  • 12th Generation Intel® Celeron® 7305E&Core™ i7-1265UE/i5-1245UE/i3-1215UE
  • 2x DDR5-4800MHz Non-ECC SO-DIMM max 64GB
  • M.2 M/B/E-Key with Nano SIM Card Slot
  • 2x LAN 2.5GbE
  • Fanless (Op. Temperature 0C ~ +50C)
  • 4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)
Product Specification
Anewtech Systems Edge PC Supermicro Edge AI Server Supermicro Edge System Edge-Server-SYS-E100-13AD-E-supermicro
Anewtech Systems Edge PC Supermicro Edge AI Server Supermicro Edge System Edge-Server-SYS-E100-13AD-E-supermicro-superserver
Product SKUsSuperServer SYS-E100-13AD-E (Black)
MotherboardSuper X13SAN-E-WOHS
Processor
CPUSingle Single Socket FCBGA1744
Intel® Core™ i5-1245UE
Core CountUp to 10C/20T; Up to 12MB Cache per CPU
NoteSupports up to 28W TDP CPUs (Air Cooled)
System Memory
MemoryMemory Capacity: 2 DIMM slots
Up to 64GB: DDR5 SO-DIMM non ECC
Memory Type: 4800MHz DDR5 SO-DIMM
Memory Voltage1.1 V
On-Board Devices
Chipsetintel System on Chip
Network Connectivity2x 2.5GbE BaseT with Intel I225-IT
Input / Output
LAN2 RJ45 2.5 Gigabit Ethernet LAN port
System BIOS
BIOS TypeAMIUEFI
BIOS FeaturesACPI 6.4
PCI F/W 3.0
SMBIOS 3.5 or later
UEFI 2.8
Management
Power ConfigurationsForce power-on by jumper
Control of power-on for recovery from AC power loss
DC 12V~24V Wide power range input
CPU thermal trip support for processor protection
ACPI Power Management
Security
HardwareTrusted Platform Module (TPM) 2.0
Chassis
Form Factor3.5" SBC
ModelCSE-E101-04
Dimensions and Weight
Height1.73" (44mm)
Width7.68" (195mm)
Depth5.94" (150mm)
Package5.12" (H) x 11.81" (W) x 11" (D)
WeightNet Weight: 2.16 lbs (0.98 kg)
Gross Weight: 4.3 lbs (1.95 kg)
Available ColorBlack
Front Panel
ButtonsPower On/Off
LEDsHDD Status
LAN1 activity
LAN2 activity
Power status
Drive Bays / Storage
Drive BaysN/A
M.21x M-Key 2242 / 2280 (PCIe 4.0 x4 (Add Optional Kit MCP-270-10105-0B when selecting NVMe type storage))
1x E-Key 2230 (PCIe 3.0 x1/USB 2.0/Intel CNVi)
1x B-Key 2242 / 2280 / 3042 (SATA 6Gb/s or PCIe 3.0 x1/USB 3.0/USB 2.0)
System Cooling
FansN/A
Power Supply84W Level power supply
AC Input84W: 100-240Vac / 47-63Hz
Operating Environment
Environmental Spec.Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
