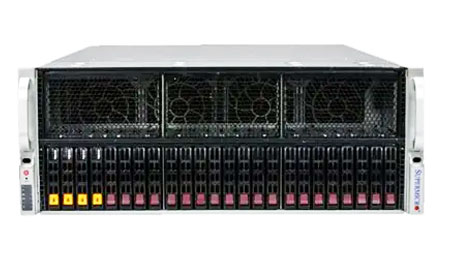

AS-4125GS-TNRT
DP AMD 4U Server with up to 8 PCIe Direct-Connect GPUs
- Flexible GPU support: active & passive GPUs
Up to 8 direct attached double width, full length GPUs
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control - Dual-Socket, AMD EPYC™ 9004 Series Processors up to 400W TDP
- 24 DIMM Slots, up to 6TB DDR5 memory
- 1 M.2 Slot
- up to 4x 2.5" Hot-swap NVMe drive bays
- AIOM / OCP 3.0 Support
Key Applications
- High Performance Computing
- AI/Deep Learning Training
Datasheet
Product Specification
| Product SKU | A+ Server AS -4125GS-TNRT (Black Front & Silver Body) |
| Motherboard | Super H13DSG-O-CPU |
| Processor | |
| CPU | Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x) |
| Cores | Up to 160C/320T; Up to 512MB Cache per CPU |
| Note | Supports up to 400W TDP CPUs * This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP |
| GPU | |
| Max GPU Count | Up to 8 double-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, H100, RTX 4000 SFF Ada Generation, L40, RTX A5500, RTX A4000, RTX 6000, RTX 5000, L40S, A40, A30, A100 AMD PCIe: Instinct MI210 |
| CPU-GPU Interconnect | Direct Attached |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 9.2TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
| SATA | SATA3 (6Gbps) |
| Chipset | AMD SP5 |
| Network Connectivity | 2x 10GbE BaseT |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
| CPU | 7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 4U Rackmount |
| Model | CSE-418G2TS |
| Dimensions and Weight | |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) |
| Available Color | Black Front & Silver Body |
| Expansion Slots | |
| PCI-Express (PCI-E) | 12 PCI-E 5.0 X16 Slots |
| Drive Bays / Storage | |
| Hot-swap | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated) |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 |
| System Cooling | |
| Fans | 8 heavy duty fans with optimal fan speed control |
| Power Supply | 4x 2000W Redundant Power Supplies, Titanium Level |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
