SYS-122C-TN

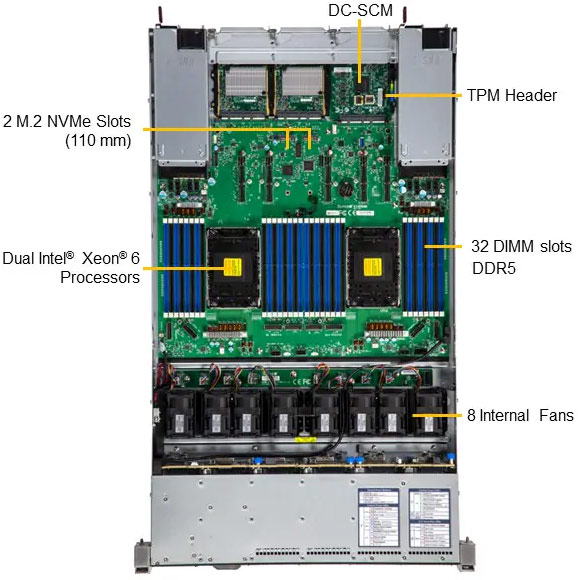

1U CloudDC with DC-MHS, 12 hot-swap 2.5” NVMe/SATA/SAS bays, 3 PCIe 5.0 x16/x8 slots and 2 PCIe 5.0 x16
- Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
- Optimized power & balanced performance for cloud applications
- Server management flexibility with OpenBMC
Key Applications
- Networking Appliance
- Data Center Optimized, Value IaaS
- HPC, Data Center
- Cloud Computing
- Private & Hybrid Cloud
- Cloud Solution Provider (CSP)
| Product SKUs | SuperServer SYS-122C-TN |
| Motherboard | Super X14DBHM |
| Processor | |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores |
| Core Count | Up to 144C/144T |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 3 single-width GPU(s) |
| System Memory | |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM |
| On-Board Devices | |
| NVMe | NVMe; RAID 0/1/5/10 support (VROC HW key required) |
| Chipset | System on Chip |
| Network Connectivity | Via Slim-AIOM |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 USB 3.0 Type-A port(s) (Rear) |
| Video | 1 VGA port(s) (Rear) |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) |
| Power configurations | ACPI/APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-DC101TS-R000NP |
| Dimensions and Weight | |
| Height | 1.7" (43.6 mm) |
| Width | 17.2" (438.4 mm) |
| Depth | 29.7" (755.1 mm) |
| Package | 7.28" (H) x 22.83" (W) x 42.5" (D) |
| Weight | Gross Weight: 41 lbs (19 kg) Net Weight: 31 lbs (17 kg) |
| Palletized Packing (W x H x L) | 49.6" (1260 mm) x 4.7" (120 mm) x 44.5" (1130 mm) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity LAN1 activity LAN2 activity Power Fail LED Power status System information |
| Buttons | Power On/Off UID button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 LP slot(s) 1 PCIe 5.0 x8 LP slot(s) 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 12 bay(s) 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s) (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 22110(default)/2280; VROC required for RAID) |
| System Cooling | |
| Fans | 8x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud(s) |
| Power Supply | 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-30°F to 140°F) Operating Relative Humidity: 8% to 80% (Non-Condensing) Non-operating Relative Humidity: 8% to 90% (Non-Condensing) |
Supermicro X14 CloudDC Server
1U and 2U rackmounts with NVMe and GPU support
- Single and dual socket Intel® Xeon® 6700 series processors with E-cores
- X14 CloudDC will also support Intel Xeon 6700 with P-cores in Q1’25
- Up to 32 DIMM slots supporting DDR5-6400
- 2.5" storage with PCIe 5.0 NVMe support
- Up to 3 PCIe 5.0 slots in 1U or 6 PCIe 5.0 slots in 2U
- Dual PCIe 5.0 AIOM slots supporting up to 400G networking
- Support for the OCP Data Center Modular Hardware System (DC-MHS)
X14 CloudDC with DC-MHS: All-in-one Rackmount Platform for Cloud Data Centers Designed to OCP DC-MHS Specifications
The new Supermicro X14 CloudDC with DC-MHS delivers ultimate flexibility on I/O and storage to support a range of cloud and data center workloads. The systems are designed to meet OCP DC-MHS specifications, improving modularity and flexibility for large-scale enterprises and cloud service providers to simplify data center management with DC-SCM modules. X14 CloudDC also features tool-less brackets, hot-swap drive trays and redundant power supplies that ensure a rapid deployment and more efficient maintenance in data centers.
High-efficiency Titanium Level redundant power supplies provide resiliency and low carbon footprint. Rich security features include Intel® SGX, TPM 2.0, signed firmware, Silicon Root of Trust, Secure Boot, System Erase, Runtime FW protection, FIPS Compliance and Trusted Execution Environment.
- Single and dual socket Intel® Xeon® 6700 series processors with E-cores
- Support for DDR5-6400 with up to 32 DIMMs per node
- Modular OCP DC-MHS support
- U.2 NVMe/SAS/SATA drives with all-hybrid options
- Support for PCIe 5.0 and CXL 2.0
1U DP CloudDC (SP)
SYS-122C-TN
Up to 12 hot-swap NVMe
2U DP CloudDC (SP)
SYS-222C-TN
Up to 24 hot-swap NVMe
1U UP CloudDC (SP)
SYS-112C-TN
Up to 12 hot-swap NVMe
Rackmount Optimized Servers
Supermicro's X14 Rackmount servers offer customers several choices, including single or dual processor configurations, a significant amount of memory capacity, and PCIe expansion slots. In addition, the new DC-MHS (Data Center Modular Hardware System) servers are designed to be installed when designing and implementing a multi-vendor rack scale facility.
| X14 Hyper | X14 CloudDC | X14 WIO | |
|---|---|---|---|
| Positioning | Flagship Enterprise | CSP/Scale-out | Entry-level, Efficiency |
| Segments | HPC, Enterprise, Cloud Service Providers, Storage, Virtualization, Networking | Cloud Service Providers, Hyperscale Data Centers, Enterprise | Virtualization, Cloud Computing, Data Center |
| Sockets | 2/1 | 2/1 | 1 |
| DIMM | 32/16 | 32/16 | 8 |
| PCIe | Up to 3 slots (1 U) Up to 8 slots (2U) | Up to 3 slots (1 U) Up to 6 slots (2U) | Up to 3 slots (1 U) Up to 5 slots (2U) |
| Drives | Up to 24 hot-swap 2.5" | Up to 24 hot-swap 2.5" | 10 hot-swap 2.5"/8 hot-swap 3.5" |
| Key Features | Maximum 1/0 flexibility | DC-MHS | UP platform |
