SYS-512B-WR
1U UP WIO with 4 hot-swap 3.5” NVMe/SAS/SATA bays and 3 PCIe 5.0 slots
![Anewtech-Systems-Rackmount-Server-Supermicro-SYS-512B-WR](/sites/default/files/styles/max_650x650/public/product-image/Anewtech-Systems-Rackmount-Server-Supermicro-SYS-512B-WR.jpg?itok=SAdAU4Sr)
- WIO systems offer flexible I/O configurations in a cost-effective architecture to deliver truly optimized systems for specific enterprise requirements.
- Single Intel® Xeon® 6 6700 series processor with E-cores
- 8 DIMM slots supporting up to 1TB of memory (6700E series CPU).
- Tool-less, Top-loading riser design support 3 PCIe 5.0 Expansion (2x FHFL + 1x LP).
- Native SATA drives supported, with option PCIe 5.0 NVMe and SAS.
- Trusted Platform Module (TPM) 2.0 onboard.
Key Applications
- Enterprise Applications
- General Purpose Computing
- Cloud Computing
- Web/Hosting Application
- Network Appliance
- Database/Storage
- Storage Headnode
- Entry GPU server
![Anewtech-Systems-Rackmount-Server-Supermicro-SYS-512B-WR-WIO-SuperServer](/sites/default/files/inline-images/Anewtech-Systems-Rackmount-Server-Supermicro-SYS-512B-WR-WIO-SuperServer.jpg)
![Anewtech-Systems-Rackmount-Server-Supermicro-SYS-512B-WR-WIO-SuperServer-Singapore](/sites/default/files/inline-images/Anewtech-Systems-Rackmount-Server-Supermicro-SYS-512B-WR-WIO-SuperServer-Singapore.jpg)
![Anewtech-Systems-Data-center-Server-Supermicro-SYS-521B-WR-Supermicro-Singapore](/sites/default/files/inline-images/Anewtech-Systems-Data-center-Server-Supermicro-SYS-521B-WR-Supermicro-Singapore.jpg)
Product SKUs | SuperServer SYS-512B-WR |
Motherboard | Super X14SBW-F |
Processor | |
CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores |
Core Count | Up to 144C/144T; Up to 108MB Cache |
Note | Supports up to 300W TDP CPUs (Air Cooled) |
GPU | |
Max GPU Count | Up to 1 double-width or 2 single-width GPU(s) |
CPU-GPU Interconnect | |
System Memory | |
Memory | Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM |
On-Board Devices | |
SATA | SATA (6Gbps) |
NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
Chipset | System on Chip |
Network Connectivity | 2 RJ45 1GbE with Intel® I210 |
Input / Output | |
LAN | 2 RJ45 1 GbE LAN port(s) 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1) |
USB | 2 USB 3.2 Gen1 Type-A port(s) (rear) 2 USB 3.2 Gen1 port(s) (Header) |
Video | 1 VGA port(s) |
Serial | 1 COM port(s) (Rear) 1 COM port(s) (Header) |
TPM | 1 TPM header |
System BIOS | |
BIOS Type | AMI 64MB SPI Flash EEPROM |
Management | |
Software | SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
Power configurations | ACPI/APM Power Management |
Security | |
Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
PC Health Monitoring | |
CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8 Phase-switching voltage regulator |
FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Chassis | |
Form Factor | 1U |
Model | CSE-815BTS-R000WNP |
Dimensions and Weight | |
Height | 1.7" (43 mm) |
Width | 17.2" (437 mm) |
Depth | 25.6" (650 mm) |
Package | 8.5" (H) x 23.5" (W) x 33.7" (D) |
Weight | Gross Weight: 34.5 lbs (15.46 kg) Net Weight: 21.5 lbs (9.75 kg) |
Available Color | Black |

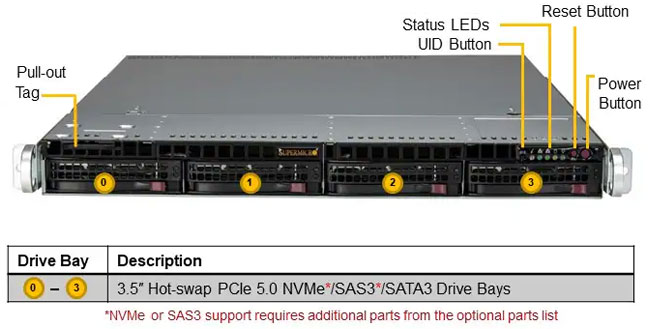

Front Panel | |
LED | Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED Unit Identification (UID) LED |
Buttons | Power On/Off button System Reset button Unit Identification (UID) button |
Expansion Slots | |
PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHFL slot(s) 1 PCIe 5.0 x8 (in x16) LP slot(s) |
Drive Bays / Storage | |
Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap 3.5" SATA drive bay(s) Option A: Total 4 bay(s) 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bay(s) Option B: Total 4 bay(s) 4 front hot-swap 3.5"/2.5" SAS* drive bay(s) (*NVMe/SAS support may require additional storage controller and/or cables) |
M.2 | 2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280/22110; VROC required for RAID) |
Peripheral Bays | 2 slim peripheral bay(s) |
System Cooling | |
Fans | 1 AOC cooling Fan(s) (optional) 5 middle cooling PWM 40x40x56mm Fan(s) |
Air Shroud | 1 CPU Air Shroud(s) |
Power Supply | 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies |
Operating Environment | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
X14 UP WIO: Industry’s Widest Variety of I/O Optimized Servers
Supermicro WIO systems offer a wide range of I/O options to deliver truly optimized systems for specific requirements. Users can optimize the storage and networking alternatives to accelerate performance, increase efficiency and find the perfect fit for their applications.
In addition to enabling customizable configurations and optimization for multiple application requirements, Supermicro WIO SuperServers® also provide attractive cost advantages and investment protection.
- Single Intel® Xeon® 6700 series processors with E-cores
- Support for DDR5-6400 with up to 8 DIMMs
- Support for PCIe 5.0 and CXL 2.0
- Native SATA support on motherboard; no additional controller card required
- Supports double-width GPU/FPGA cards in both 1U and 2U
![Anewtech-Systems-Supermicro-Rackmount-WIO-Server-Superserver-SYS-112B-WR](/sites/default/files/inline-images/Anewtech-Systems-Supermicro-Rackmount-WIO-Server-Superserver-SYS-112B-WR.jpg)
1U UP WIO
SYS-112B-WR
10 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 slots
![Anewtech-Systems-Supermicro-Rackmount-WIO-Server-Superserver-SYS-512B-WR](/sites/default/files/inline-images/Anewtech-Systems-Supermicro-Rackmount-WIO-Server-Superserver-SYS-512B-WR.jpg)
1U UP WIO
SYS-512B-WR
4 hot-swap 3.5” NVMe/SAS/SATA bays and 3 PCIe 5.0 slots
![Anewtech-Systems-Supermicro-Rackmount-WIO-Server-Superserver-SYS-522B-WR](/sites/default/files/inline-images/Anewtech-Systems-Supermicro-Rackmount-WIO-Server-Superserver-SYS-522B-WR.jpg)
2U UP WIO
SYS-522B-WR
8 hot-swap 3.5” SAS/SATA (4 NVMe hybrid) bays and up to 5 PCIe 5.0 slots
What’s New in Supermicro X14 Servers
New Intel® Xeon® 6 Processors
Higher core count for greater compute density
Faster memory bandwidth and new capabilities to extend capacity
EDSFF E1.S and E3.S NVMe support
Data Center Modular Hardware System (DC-MHS) support
