SSG-641E-E1CR24H

4U storage server. 24 hot-swap 3.5" SAS/SATA bays (6 optional NVMe hybrid, SAS hardware RAID), PCIe 5.0

Dual socket 5th/4th Gen Intel® Xeon® Scalable processors
Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
2x 10 GbE onboard via Broadcom BCM57416
24x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
5x 8cm hot-swap counter-rotate redundant PWM cooling fans
1200W Redundant Power Supplies Titanium Level (96%)
HW RAID support via Broadcom® 3908

Key Applications

Enterprise Server
iSCSI SAN
HPC, Data Center

Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks

Datasheet

SSG-641E-E1CR24H.pdf

Product Specification

Anewtech-Systems-Storage-Server-Supermicro-SSG-641E-E1CR24H-4U-storage-server

Anewtech-Systems-Storage-Servers-Supermicro-SSG-641E-E1CR24H-Data-center-Server

Anewtech-Systems-Storage-Server-Supermicro-SSG-641E-E1CR24H-superstorage Supermicro Servers Supermicro Singapore

Product SKUs	SuperServer SSG-641E-E1CR24H (Silver)
Motherboard	Super X13DEI-T
Processor
CPU	Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1 V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	2x 10GbE BaseT with Broadcom BCM57416
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 2 Onboard 10 GbE LAN Ports
USB	4 USB 3.0 port(s) (4 Rear_USB)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 Super< OM (Disk on Module) port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	4U Rackmount
Model	CSE-846BTS-R1K23BP5
Dimensions and Weight
Height	7"
Width	17.2"
Depth	26"
Package	15" (H) x 27" (W) x 39" (D)
Weight	Net Weight: 55 lbs (24.9 kg) Gross Weight: 92 lbs (41.7 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LEDs	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots

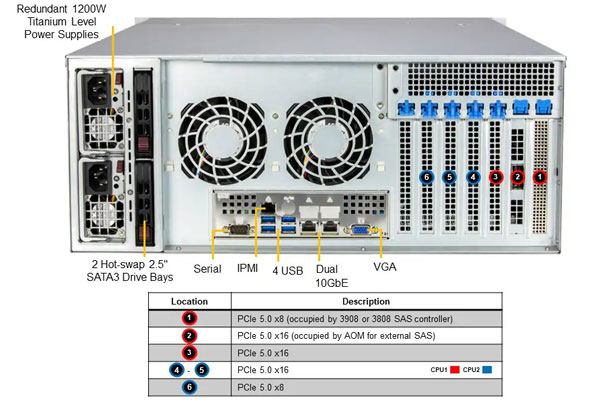

PCI-Express (PCIe)	2 PCIe 5.0 x8 LP slot(s) 4 PCIe 5.0 x16 LP slot(s)
Note	PCIe slot 1 & 2 are occupied by the Storage Controller/JBOD Expansion Module
Drive Bays / Storage
Hot-swap	24x 3.5" hot-swap SATA3/SAS3 drive bays (6x 2.5" NVMe hybrid) (2x 2.5" hot-swap SATA3 rear drive bays)
M.2	2 M.2 NVMe M-Key, 2280 and 22110
System Cooling
Fans	5 Heavy Duty 8cm Fan(s)
Power Supply	1200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Large-Scale Storage Building Blocks

Cost-Effective Systems for Large-Scale Object Storage

As the amount of data produced by today’s AI, HPC and Cloud applications continues to increase, cost-effective scale-out storage is essential for any organization’s storage strategy.
Supermicro X13 designs maximize the efficiency and cost effectiveness of large-scale data storage with intelligent, high density, economically optimized designs.
