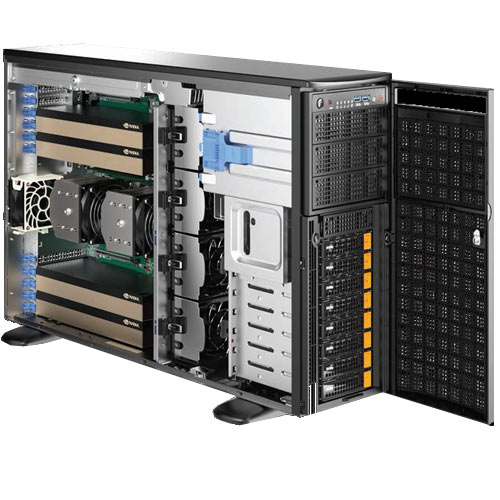

SYS-741GE-TNRT
DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPU
- 5th/4th Gen Intel® Xeon® Scalable processor
- 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
- 4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
- Up to 4x double width, full length GPUs
- 2x M.2 NVMe for boot drive only
- Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays
- Up to 8x NVMe drives (8 NVMe drives supported by default)
- 4 Removable heavy duty fans w/ Optimal Fan Speed Control
- 2x 2000W (1+1) Redundant Power Supplies, Titanium Level
Key Applications
- High Performance Computing
- VDI
- AI/Deep Learning Training
- Media/Video Streaming
- Cloud Gaming
- Animation and Modeling
- Design & Visualization
- 3D Rendering
- Diagnostic Imaging
- AI Training
Datasheet
Product Specification
| Product SKUs | SuperServer SYS-741GE-TNRT (Black Front & Silver Body) |
| Motherboard | Super X13DEG-QT |
| Processor | |
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Aircooled) |
| GPU | |
| Max GPU Count | Up to 4 double-width or 4 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A30, A100 AMD PCIe: Instinct MI210 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550-AT2 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
| CPU | 8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | Tower Rackmount |
| Model | CSE-749TS-R2K05BP |
| Dimensions and Weight | |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 27" (H) x 13" (W) x 38" (D) |
| Weight | Net Weight: 46 lbs (20.9 kg) Gross Weight: 62 lbs (28.1 kg) |
| Available Color | Black Front & Silver Body |

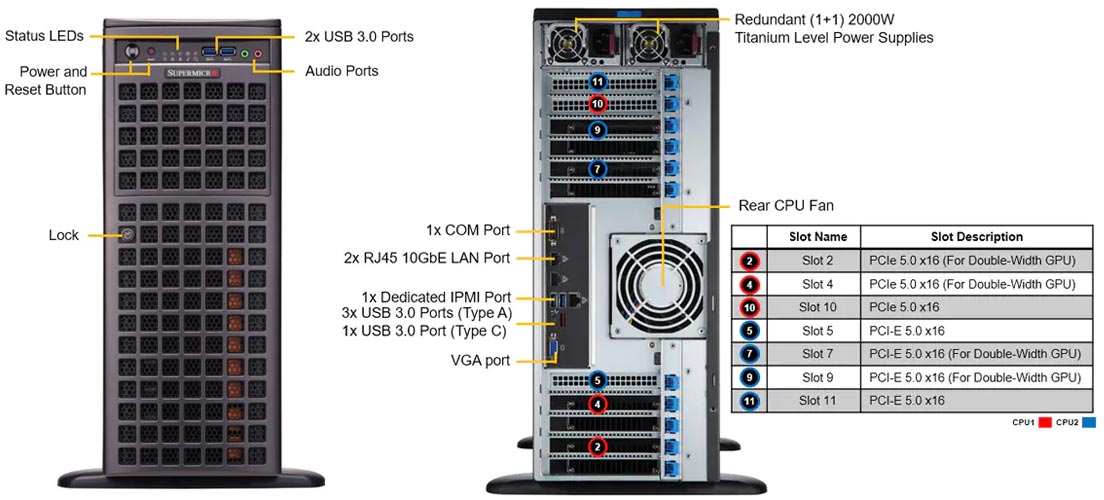

| Front Panel | |
| Buttons | Power On/Off button System Reset button |
| LEDs | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Expansion Slots | |
| PCI-Express (PCIe) | 7 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays / Storage | |
| Hot-swap | 8x 3.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid) |
| M.2 | 2 M.2 NVMe |
| System Cooling | |
| Fans | 4 heavy duty fans with optimal fan speed control |
| Power Supply | 1U 2000W Redundant Titanium AC Power supply, 73.5x40x265mm, CRPS |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 100-127Vac / 50-60Hz 200-240Vac / 50-60Hz |
| DC Input | 2000W: 230-240Vdc |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Visualization and Omniverse Workloads
AI Workstations
4-GPU 5U Full-Tower Rackmount Workstation
Benefits & Advantages
- Powerful, compact configuration optimized for Omniverse and AI development
- Rackmount data center server performance in portable tower form factor
- Ideal for office, school, lab or field deployment
Key Features
- 4 NVIDIA L40S/L40 PCIe GPUs
- Dual 4th Gen Intel Xeon Scalable processorsSupports PCIe 5.0, DDR5 and Compute Express Link (CXL) 1.1+
- 8 3.5" hot-swap NVMe/SATA/SAS and 2 M.2 slots
- 4 PCIe 5.0 x16 double-width slots (for GPUs) and 3x PCIe 5.0 x16 single-width slots for maximum flexibility
- On-board 10GbE LAN
PCIe GPU Workstation
Optimized for HPC, action-oriented AI, 3D simulation, advanced graphic design and rendering
Supermicro X13 PCIe accelerated solutions empower the creation of 3D worlds, digital twins, and 3D simulation models.
Support for the PCIe 5.0 for the most demanding workloads, with CPU-direct U.2 NVMe bays ensuring maximum data throughput. Additional networking slots provide connectivity of up to 400Gb/s to create high performance clusters of up to 32 nodes. Liquid Cooling options are available for delivering superior efficiency for the most demanding performance.
Liquid Cooled DP GPU Workstation
Closed-loop liquid cooling,
Up to 4 double-width liquid cooled GPUs
5th Gen Intel® Xeon® Scalable Processors
- Up to 64 cores and 385W TDP per CPU
- Support for Intel Xeon® Max Series CPUs with High Bandwidth Memory
- Support for PCIe 5.0, DDR5 and CXL 1.1
- Built on the Intel® 7 process
- Built in accelerators:
- Intel AMX
- Intel® Dynamic Load Balancer
- Intel® QuickAssist
- Technology (QAT)
- Intel vRAN Boost
Delivering Solutions Optimized for Tomorrow’s Data Center Workloads
Complete Rack-Scale Solutions
- Full design, integration, validation and testing services for rack-scale and multi-rack clusters
- Complete rack-scale liquid cooling solutions developed in house
Performance and Energy Optimized
- Enhanced thermal capacity to support the highest performing CPUs and GPUs
- Optimized to run in high-temperature data center environments up to 40°C
Improved Security and Manageability
- Industry-standard compliance for hardware and silicon Root of Trust (RoT)
- Cryptographical attestation of components throughout the entire supply chain
Supports Open Industry Standards
- The latest industry technologies including PCIe 5.0, DDR5, and CXL
- Open Compute Project (OCP) standards including OCP 3.0, OAM, ORV2 and OSF as well as Open BMC
