E-2403LM

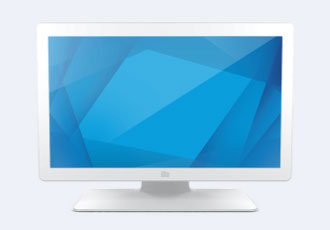

24" Medical Grade Touchscreen Monitor

Anewtech-Systems-Medical-Computer Elo touch Singapore 24" Medical Touchscreen Monitor E-2403LM
  • IP-54 Rating: Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution
  • IEC 60601: IEC 60601 compliant power supply included
  • DICOM 14: Ensures accurate and uniform image reproduction for reliable review
  • Integrated Touch: TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves
Datasheet
Product Specification
Anewtech Elo touch Singapore 15" Medical Touchscreen Monitor E-1502LM

The Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Part Number(s)TouchPro PCAP White with stand - E659395
TouchPro PCAP Black with stand - E659195
TouchPro PCAP White without stand - E381452
TouchPro PCAP Black without stand - E381251
Enclosure ColorWhite or Black
Touch Technology & CapacityPCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size23.8'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio16:9
Active Area (mm)20.75" x 11.67" / 527.04 mm x 296.46 mm
Resolution1920 x 1080 @ 50, 60Hz
Other Supported Resolutions640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
Viewing AngleHorizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors16.7 million
Brightness (typical)LCD Panel: 250 nits
TouchPro PCAP: 225 nits
Response Time-total (typical)16 msec
Contrast Ratio1000:1
Touch InterfaceUSB, Serial (via VGA)
Surface TreatmentAnti-glare
On Screen DisplayAccessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Lockouts: OSD, Power
I/O PortsVGA (RS232 touch supported via E810917)
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB
SpeakersTwo x 2W internal speakers
Input Video FormatVGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)
Input Video FrequencyHorizontal: 30 – 82KHz
Vertical: 50 - 75Hz
Power Consumption (Typical)Monitor + AC/DC adapter
ON (Default - 75% Brightness): 15.68 W
ON (Typical - 100% Brightness): 17.33 W
SLEEP: 1.09 W
OFF: 0.24 W
Input Voltage12VDC +/- 5%
100-240VAC, 50/60Hz
Input ConnectorCoaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (without Stand)13.94" x 22.62" x 1.69" / 354.1 mm x 574.6 mm x 42.8 mm
Monitor Dimensions (with Stand)17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm
Operating Temperature0°C to 40°C / 32°F to 104°F
Storage Temperature-20°C to 60°C / -4°F to 140°F
HumidityOperating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
SealabilityTouchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF50,000 hours demonstrated
Mounting OptionsVESA 4-hole 100mm mounting interface on rear of unit
Regulatory approvals and declarationsCanada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico CoC
RoHS, China RoHS, WEEE, REACH
India BIS

UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1
CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)
CE: IEC 60601-1-2:2014 (Ed. 4)
Risk Management: ISO 14971:2007 + EN ISO 14971:2012
Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)
DICOMDICOM Part 14 (AAPM secondary display)
Ingress ProtectionIP54 entire enclosure
Impact ProtectionIK06

Features:

Anewtech-medical-computer-elo-IP-54
IP-54 Rating
Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution
Anewtech-medical-computer-elo-touch
IEC 60601
IEC 60601 compliant power supply included

Anewtech-medical-computer-elo-DICOM-14
DICOM 14
Ensures accurate and uniform image reproduction for reliable review
Anewtech-medical-computer-elo-IEC-60601
Integrated Touch
TouchPro® PCAP offers a 10-touch tablet-like experience, use with wet or dry gloves

DICOM Medical Grade Touchscreen Monitors

DICOM 14 - Designed for Consistent Image Review

Help ensure healthcare providers and patients can view clear, accurate and consistent medical images. The 03-Series Medical Monitors are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.



Purpose-built for Healthcare

The 03-Series Medical Monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo can help develop and customize products for almost any medical device including ventilators, anesthesia machines, patient monitoring and medication dispensers.

Medical Grade Touchscreen Monitors

Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.

Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with critical healthcare features, including adherence to IP-22 and IEC 60601-1 standards.
