WM-M101P-ME

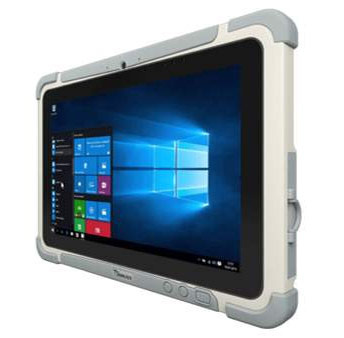

10.1" 1920 x 1200 Rugged Medical Tablet PC with direct optical bonding. Intel® Apollo Lake Pentium N4200 processor

Anewtech-Winmate-medical-computer-tablet-pc-WM-M101P-ME

Features

  • 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
  • Intel® Apollo Lake Pentium N4200 processor
  • Housing enhanced with antimicrobial properties
  • USB 3.0 (Type C) connector
  • Optional 1D/2D barcode scanner to scan medications or wrist bands
  • Lightweight, rugged, IP65 waterproof and dustproof
  • IEC 60601-1, 60601-1-2 Medically certified

Datasheet

Specification

Display Specifications
Size 10.1"
Brightness 600 nits
Resolution 1920x1200 WUXGA
Contrast Ratio 800:1
Touch Multi-Touch Projected Capactive
Panel Viewability Optical Bonding for Sunlight readable
System Specification
Processor Intel® Pentium N4200 Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology
Memory 4GB SODIMM DDR3L-1600 (up to 8GB)
Storage 64GB SSD, Optional up to 512GB, up to 128GB additional storage with optional microSDXC card slot
Audio 1W Speaker x 2 (Built-in)
Wireless Communication
WLAN 802.11 a/b/g/n/ac
Bluetooth Bluetooth 5.0
WWAN Optional 4G (LTE, HSPA+, GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT)
GPS GPS, GLONASS
In front Control
Control Button 1 x Power Button
1 x Home
2 x volume key
1 x function key(Programmable function key configured by Hottab Utility)
LED indicator Power, Battery, HDD, RF
Mechanical and Environment
Dimensions (W x L x H) 271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches)
Net Weight (kg) 1.2 kg (2.7 lbs) with standard battery,
1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
IP Proof IP65 certified, Dustproof and Waterproof
Operating Humidity 10% to 90% RH, non-condensing
Certifications CE, FCC, IC
IEC 60601-1, IEC 60601-1-2, EN 60601-1, ANSI/AAMI ES 60601-1
Housing Rugged housing enhanced with antimicrobial properties
Power Management
Power Input 12~19V DC
Battery 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P) 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
Adapter 100-240V, 50-60Hz / 19V DC
Battery Operating Time Standard Battery: 8 hours
Product Specification
OS Windows 10 IoT Enterprise (64 bit)
RFID HF RFID Reader 13.56Hz (Optional)
Barcode 1D/2D Barcode Reader (Optional)
Security
Security Password security for user and hard disk lock
Trusted platform module (TPM) 2.0
Mobile Device Management SOTI MobiControl compatible

Highlights:

Anewtech-medical-tablet-pc-WM-M101P-ME-all-in-one-Winmate

Housing Enhanced with Antimicrobial Properties

The housing of healthcare tablet computers and handhelds is enhanced with antibacterial properties to minimize bacteria growth and be resistant to a variety of cleaning chemicals with a waterproof design that allows cleaning the surface with wipes, sprays, and liquids without concern of affecting the internal components.

divider

Anewtech-medical-tablet-pc-WM-M101P-ME-Winmate-medical-computer

Transforming the Way Patient Care is Delivered

Healthcare-grade tablet computers are versatile all-in-one wireless communications and data capture tools designed for hospital and clinical environments. It features integrated tools for data collection, including a barcode scanner, RFID/ NFC reader, or smart card reader to allow clinicians to track inventory or pull up patient charts with the quick click of a button verify patients with a barcode on their wristband. Notice that integrated data collection options may vary by model.

divider

Anewtech-medical-tablet-pc-WM-M101P-ME-Winmate-medical-computer

Fanless Performance

Healthcare-grade tablet computers and handhelds offer robust and reliable high-performance computing with a fanless thermal system perfect in healthcare settings.

divider

Anewtech-medical-tablet-pc-WM-M101P-Winmate-medical-computer

Suitable for Emergency Vehicle Applications

A lightweight yet durable waterproof, shockproof and dustproof, the healthcare tablet computers installed on a healthcare cart or inside an ambulance vehicle with its optional tailored-made accessories for in-vehicle applications withstand strong vibration from the moving vehicle with no parts disconnected or loose.
