AD-ARK-3534C

Intel® Core™ 12th/13th/14th Gen i3/i5/i7/i9 LGA1700 Expansion Fanless Box PC

Anewtech-Systems Embedded-PC AI-Inference-System AD-ARK-3534C Advantech Embedded Computer Embedded System
  • Support Intel® Core™ 12th/13th/14th Gen. i3/i5/i7/i9 processor
  • Triple independent display: HDMI + HDMI + Optional Display
  • DDR5 SO-DIMM memory support up to 64 GB
  • 9-36VDC wide range power input
  • Up to 3sets 2.5" hard drive bays, support Intel® SW RAID
  • Support up to 4GbE, 8USB, 8COM, 16bit DIO, 2CANBus, TPM2.0
  • SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
Datasheet
Product Specification
ModelARK-3534C-00A1
Processor
ChipsetH610E
Memory
TechnologyDDR5 4800 MHz
Max. Capacity64 GB
Socket2 x 262 pin DDR5 SO-DIMM
Graphics
Graphic EngineDirectX 12, OpenGL 4.5
HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
HDMI2
Audio
Main SystemRealtek ALC888S, High Definition Audio, Line-out, Mic-in
Ethernet
Controller2
LAN110/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN210/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
I/O Interface
Serial Port4 x RS-232/422/485 port with auto flow control, 2 x RS-232 (additional COM7/8 2 x RS-232 by optional cable)
USB Interface4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0
Expansion
M.21 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm)
PCI Express x 161
PCI2
Storage
2.5" HDD/SSD2 x 2.5" SATAIII Drive bay (compatible with 15mm height)
Other
Watchdog Timer255 levels timer interval, setup by software
Software Support
Microsoft WindowsWindows 10
Certification
EMCCE/FCC Class B, CCC, BSMI, UKCA
Safety CertificationsCB, UL, CCC, BSMI, UKCA
Power Requirement
Power TypeAT/ATX
Power Input Votage9 ~ 36 VDC

Use Case: Optimizing Production Efficiency with Agricultural Robots

AI-based agricultural robots increase selectivity precision and robustness within modern agriculture. These unmanned, automated machines are capable of analyzing crops for maturity, harvest logistics, and adaptation to various operating environments.

ARK-3534 was chosen for its powerful CPU and GPU computing power that enables quick and accurate image processing and analysis. The system features 4 x PCIe/ PCI slots, diverse I/O, and flexible expansion options for multiple device connections.

Anewtech-Systems-Embedded-PC-AI-Inference-System-AD-ARK-3534-Advantech

Benefits

  • Built-in power supply and optimized thermal solution for CPU
  • GPU system integration
  • Real-time control with built-in TSN and TCC
  • Industrial-grade ruggedized design
Anewtech-Systems-Embedded-PC-AI-Inference-Systems-AD-ARK-3534-Advantech-Singapore

High-Performance Edge Computing

AD-ARK-3534 Series



A High-Performance, Multi-Functional Edge Computer for Semiconductor Equipment Applications

  • Breakthrough performance with 25+ I/O Connections
  • Expandable and reliable design for multi-tasking applications
  • Supports up to 4 x PCI/PCIe slots for AI vision, motion, data acquisition, and I/O cards

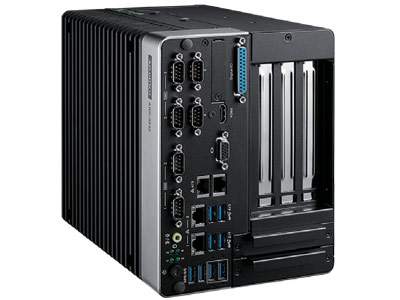

Anewtech-Systems-Embedded-PC-AI-Inference-System-AD-ARK-3534B-Advantech-Singapore

AD-ARK-3534B

Two Slots Solutions
PCIe x16 (2-slot Space) and PCIe x4

Anewtech-Systems-Embedded-PC-AI-Inference-System-AD-ARK-3534C-Advantech-Singapore

AD-ARK-3534C

Three Slots Solutions
2 x PCI and PCIe x16

Anewtech-Systems-Embedded-PC-AI-Inference-System-AD-ARK-3534D-Advantech-Singapore

AD-ARK-3534D

Four Slots Solutions
PCIe x16 (2-slot space),
PCIe x4, and 2 x PCI
