AD-IPC-242

Compact Industrial Computer Chassis for PCE-2000 Series CPU Board and 250W PSU
Anewtech-Systems Industrial-Computer Advantech Industrial Chassis AD-IPC-242
  • Compact IPC chassis with two front expansion slots
  • Compact design for small cabinet or limited space
  • 2 - 3 independent displays (HDMI/VGA/DP or DVI)
  • 4 expansion slots (PCIe/PCI)
  • Rich I/O: 2 x GbE, 6 x USB3.2, 1 x NVMe M.2, 2 x SATAIII, 2 x RS-232/422/485 Serial Ports, 1 x internal USB 2.0
  • 1 x swappable HDD/SSD tray
  • 250W Flex ATX power support
  • Supports power output 5V/12V (max. 2A)
  • Dimension: 333 (W) x 269.2 (D) x 88 (H) mm
Datasheet
AD-IPC-242.pdf
Product Specification
Anewtech AD-IPC-242 industrial computer Advantech

AD-IPC-242 is compatible with CPU board - AD-PCE-2032 and AD-PCE-2132, supporting 10th Generation Intel® Core™ Processors, and all the I/O ports are located in the front panel for easy access and space savings. AD-IPC-242 comes with 250W PSU with 100~240 VAC and a wide range of I/O ports as well as multiple expansion slots, aims at users environment requiring minimum setup effort yet multi-functional platform. Moreover, it supports 5 VDC/2A and 12 VDC/2A power output for powering external devices



Powerful Compact IPC

Anewtech-Systems-Industrial-Computer-Chassis-Advantech-IPC-AD-IPC-320

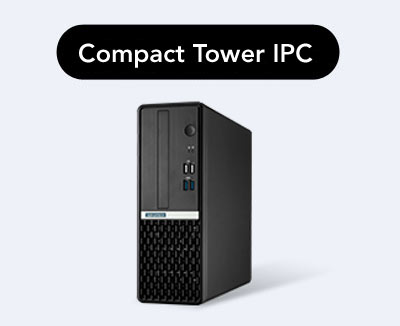

IPC-320
Compact Tower IPC

  • 12/13/14th Gen. Intel® Core™ i processors
  • Supports DDR4 up to 64GB, multiple I/O and 2 PCIe slots
  • Desktop compact IPC
Anewtech-Systems-Industrial-Computer-Chassis-Advantech-IPC-AD-IPC-240

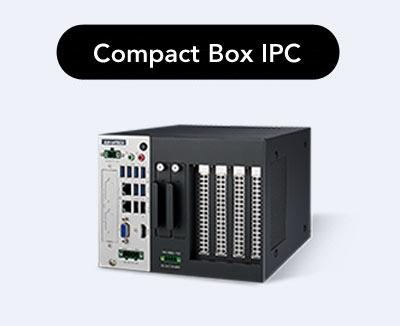

IPC-240
Compact Box IPC

  • 12/13/14th Gen. Intel® Core™ i processors
  • Supports DDR5 up to 64GB, multiple I/O and 4 PCIe/PCI slots
  • Control cabinet compact IPC
Anewtech-Systems-Industrial-Computer-Chassis-Advantech-IPC-AD-IPC-220

IPC-220
Compact Box IPC

  • 12/13/14th Gen. Intel® Core™ i processors
  • Supports DDR5 up to 64GB, multiple I/O and 2 PCIe slots
  • Single-side IO, ideally for equipment integration
Anewtech-Systems-Industrial-Computer-Chassis-Advantech-IPC-AD-IPC-242

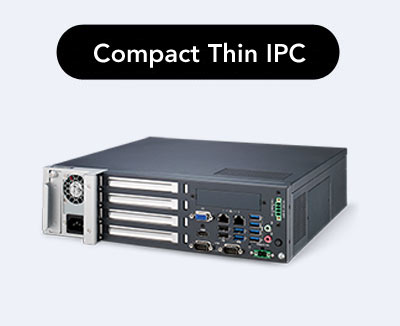

IPC-242
Compact Thin IPC

  • 12/13/14th Gen. Intel® Core™ i processors
  • Supports DDR5 up to 64GB, multiple I/O and 4 PCIe/PCI slots
  • Single-side IO, ideally for equipment integration


Satisfies Both Production Line and Machine Control Needs

Anewtech-Systems-Industrial-Computer-Chassis-Advantech-IPC-AD-IPC-320-Automation

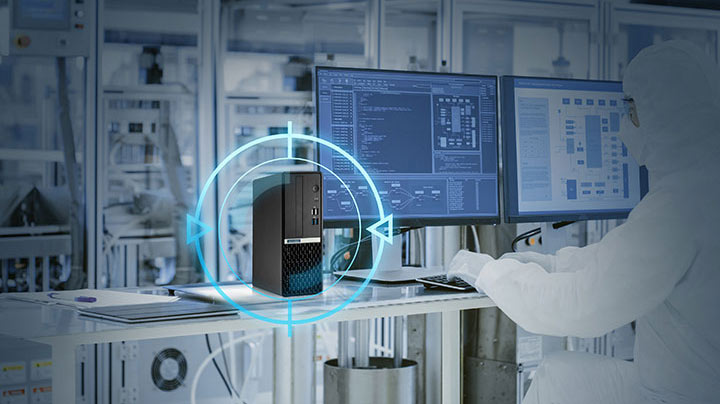

Production Line Control

  • Supports low acoustics operation (34dB) and multiple I/O on both front and rear sides.
  • Perfect for manufacturing production lines, laboratory equipment, central control rooms, and tower IPC requirements.
Anewtech-Systems-Industrial-Computer-Chassis-Advantech-IPC-AD-IPC-242-Automation

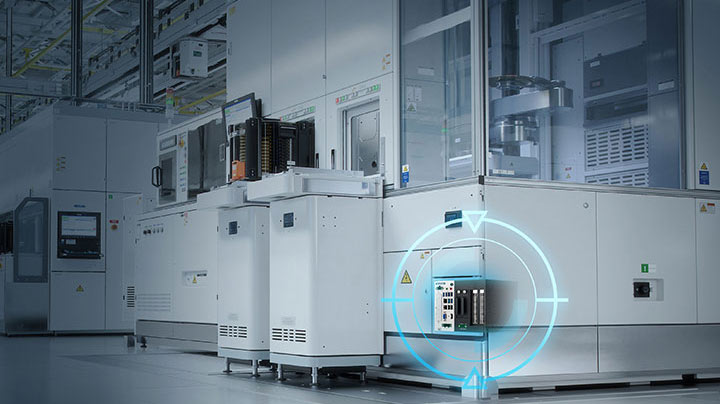

Machine Control

  • The smallest box IPCs with high performance, front-I/O and flexible PCIe/PCI expansion for 2/4 add-on cards.
  • Perfect for machine vision, industrial equipment manufacturing, factory automation, and motion control.
