AS-IMB-X1231
Mini-ITX Motherboard supports Intel® 14th/13th/12th Gen Core™ Processors with W680 chipset
- Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
- 2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGA
- TPM 2.0 onboard IC
- Supports Intel® vPro, AMT, RAID 0/1/5/10
- ATX-PWR (24+4-pin) and +12V DC-In co-design
Datasheet
Product Specification
| Form Factor | |
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.0-in) |
| Processor System | |
| CPU | Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset |
| Chipset | Intel® W680 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 3200 MHz |
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Iris® Xe Graphics |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| eDP | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Quad Display |
| Expansion Slot | |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G |
| PCIe | 1 x PCIe x16 (Gen4, Support riser card x8/x8) |
| SIM Socket | 1 x Socket connected to M.2 Key B |
| Audio | |
| Interface | Realtek ALC897, High Definition Audio. Line-out,Mic-in |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, support AMT/vPro LAN2: Intel® I225LM with 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |

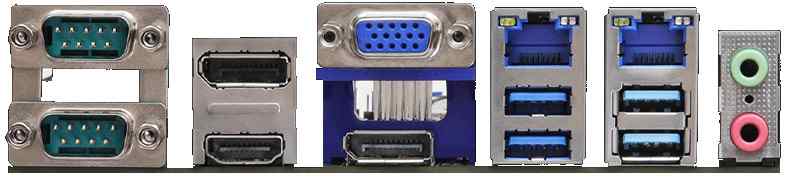

| Rear I/O | |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 2 x DP 1.4a++ |
| VGA | 1 |
| Ethernet | 2 x 2.5 Gigabite LAN |
| USB | 4 x USB 3.2 (Gen2) |
| Audio | 2 (Mic-in, Line-out) |
| COM | 2 x COM(RS-232/422/485) |
| Internal Connector | |
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
| COM | 3 x COM(RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM 2.0 onboard IC |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD 1 x M.2 (Key M, 2242) only use with M2X4-SATA-4P module to support extra 4 SATA ports |
| SATA | 4 x SATA3 (6Gb/s) |
| RAID | Intel® SATA RAID 0/1/5/10 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+4-pin) and +12V DC-In co-design |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Industrial Motherboards with Intel® Core 14th Gen Processor Optimized for Edge Performance and Flexibility
| Intel® Core 14th Gen Processors Motherboard with DDR5 | |||
| Chipset | H610 | Q670 | W680 |
| Mini-ITX (High Rise I/O) | IMB-1237 | IMB-1238 | IMB-X1238 |
| Mini-ITX (Thin I/O) | IMB-1239-WV | IMB-1240-WV | IMB-X1240-WV |
| Micro-ATX | IMB-1315 | IMB-1316 | IMB-X1316 , IMB-X1316-10G |
| ATX | IMB-1713 | IMB-1714 | IMB-X1714 |
| Intel Core 14th Gen Processors Motherboard with DDR4 | |||
| Mini-ITX (High Rise I/O) | IMB-1230 , IMB-1241 , IMB-1242 | IMB-1231 | IMB-X1231 |
| Mini-ITX (Thin I/O) | IMB-1232-WV | IMB-1233-WV | IMB-X1233-WV |
| Micro-ATX | IMB-1314 | IMB-X1314 | |
| ATX | IMB-1712 | IMB-X1712 | |
