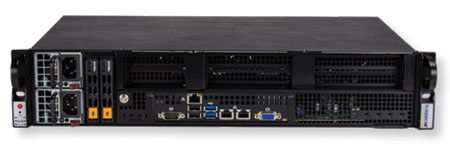

SYS-212B-FN4TP

2U Short-depth front I/O System with 2 x 10G ports, 2x 2.5" NVMe drive bays and redundant AC PSU

Anewtech-Systems-IoT-Server-Supermicro-SYS-212B-FN4TP
  • Design with compliance to NEBS-Level 3
  • Single Intel® Xeon® 6700E series processors with E-cores
  • 8 DIMM slots supporting up to 1TB of memory
  • Up to 4 PCIe 5.0 x16 (3 FHHL + 1 HHHL) &1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards
  • Onboard 2x 10GbE, 2X 10G SFP+
  • Optional 2 front hot-swap 2.5" NVMe drive bays

Key Applications

  • 5G Core and Edge
  • AI Inference and Machine Learning
  • Network Function Virtualization
  • Cloud Computing
Datasheet
Product Specification
Anewtech-Systems-IoT-Server-Supermicro-Edge-System-SYS-212B-FN4TPAnewtech-Systems-IoT-Server-Supermicro-SYS-212B-FN4TP-SuperServer-Supermicro-Singapore
Product SKUSuperServer SYS-212B-FN4TP
MotherboardSuper X14SBM-TP4F
Processor
CPUSingle Socket E2 (LGA-4710)
Intel® Xeon® 6 6700 series processors with E-cores
Core CountUp to 144C/144T; Up to 108MB Cache
NoteSupports up to 350W TDP CPUs (Air Cooled)*
*Air Cooled CPUs with TDP over 205W only supported under specific conditions.
GPU
Max GPU CountUp to 4 single-width GPU(s)
CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU InterconnectPCIe
System Memory
MemorySlot Count: 8 DIMM slots
Max Memory (2DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
On-Board Devices
NVMeNVMe; RAID 0/1 support(Intel® VROC RAID key required)
ChipsetSystem on Chip
Network Connectivity2 RJ45 10GBASE-T with Intel® X710-TM4
2 SFP+ 10GbE with Intel® X710-TM4
Input / Output
LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
2 SFP+ 10 GbE LAN port(s)
2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
USB2 USB 3.2 Gen1 Type-A port(s) (front)
2 USB 3.2 Gen1 Type-A port(s) (Header)
Video1 VGA port(s)
Serial1 COM port(s) (Header)
System BIOS
BIOS TypeAMI 256MB SPI Flash
Management
SoftwareSuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurationsACPI Power Management
Power-on mode for DC power recovery
Security
HardwareTrusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
FeaturesCryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
CPUMonitors for CPU Cores, Chipset Voltages, Memory
FANFans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
TemperatureMonitoring for CPU and chassis environment
CPU thermal trip support, PEPI
Chassis
Form Factor2U Rackmount
ModelCSE-211M-R000NDP
Dimensions and Weight
Height3.5" (88.9 mm)
Width17.2" (436.88 mm)
Depth11.8" (298.8 mm)
Package7.4" (H) x 19.3" (W) x 23.3" (D)
WeightGross Weight: 22 lbs (10 kg)
Net Weight: 17 lbs (7.7 kg)
Available ColorSilver/Black
Expansion Slots
PCI-Express (PCIe) ConfigurationDefault
2 PCIe 5.0 x16 FHHL slot(s)
1 PCIe 5.0 x16 HHHL slot(s)
1 PCIe 5.0 x8 HHHL slot(s)
Option A*
3 PCIe 5.0 x16 FHHL slot(s)
1 PCIe 5.0 x8 FHHL slot(s)
1 PCIe 5.0 x8 HHHL slot(s)
Option B*
3 PCIe 5.0 x16 FHHL slot(s)
1 PCIe 5.0 x8 FHHL slot(s)
1 PCIe 5.0 x16 HHHL slot(s)
(*Requires additional parts, please see the optional parts list for details. )
M.22 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key)
Drive Bays / Storage
Drive Bays ConfigurationDefault: Total 2 bay(s)
2 front hot-swap 2.5" NVMe drive bay(s)
M.22 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280/22110)
System Cooling
Fans4x 4-PIN PWM 8cm Fan(s)
Power Supply2x 800W Redundant (1 + 1) power supplies
2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies
2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies
Operating Environment
Environmental Spec.Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
