SYS-222BT-DNR
2U 2-Node BigTwin with 12 hot-swap 2.5" NVMe drives per node
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual Socket E2 Intel® Xeon® 6 6700 series processors with E-cores up to 330W with air or liquid cooling
- Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
- Flexible networking with OCP 3.0 AIOM slot
- Up to 2 PCIe 5.0 x8 LP + 1 PCIe 5.0 x16 LP slots
- Internal PCIe 5.0 for 2x NVMe M.2 support onboard
- Optional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1

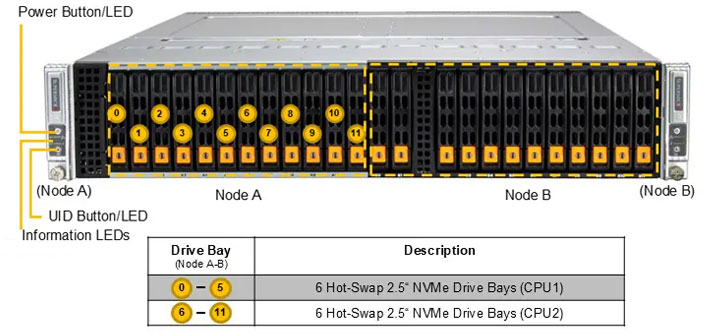

- Up to 12 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
Key Applications
- High-Performance File System
- Diskless HPC Clusters
- Scale Out All-Flash NVMe Storage
- Big Data Analytics and AI
| Product SKU | SuperServer SYS-222BT-DNR |
| Motherboard | Super X14DBT-B |
| Processor (per Node) | |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores |
| Core Count | Up to 144C/144T; Up to 108MB Cache per CPU |
| Note | Supports up to 330W TDP CPUs (Air Cooled) Supports up to 330W TDP CPUs (Liquid Cooled) |
| System Memory (per Node) | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 64000MT/s ECC DDR5 RDIMM |
| On-Board Devices (per Node) | |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB | 2 USB 3.0 Gen2 Type-A port(s) (Rear) |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB Flash ROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 8+4 Phase-switching voltage regulator |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-217BD2-R2K22P |
| Dimensions and Weight | |
| Height | 3.47" (88 mm) |
| Width | 17.68" (449 mm) |
| Depth | 28.75" (730 mm) |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) |
| Weight | Gross Weight: 80.7 lbs (36.6 kg) Net Weight: 55.1 lbs (25 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Buttons | Power On/Off button UID button |
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x8 LP slot(s) 1 PCIe 5.0 x16 LP slot(s) 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible) |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 12 bay(s) 12 front hot-swap 2.5" PCIe 5.0 NVMe drive bay(s) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 22110(default); VROC required for RAID) |
| System Cooling | |
| Fans | 4x 16.5K RPM Heavy Duty 80x80x38mm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
Supermicro X14 BigTwin® Server
Highly configurable 2U 4-node and 2U 2-node systems optimized for compute or storage density
- Dual socket architecture featuring Intel® Xeon® 6700 series processors with E-cores
- X14 BigTwin will also support Intel Xeon 6700 with P-cores in Q1’25
- Optimized thermal design with liquid cooling options
- All-hybrid hot-swappable NVMe/SAS/SATA drive bays with new support for EDSFF E3.S drives
- Resource Saving Architecture with shared power and cooling for increased efficiency
- Flexible networking with up to 400G Ethernet per node
X14 BigTwin®: Industry-leading Multi-node Architectures
Supermicro X14 BigTwin® systems provide superior performance and serviceability with dual Intel® Xeon® 6 processors (Formerly codenamed Sierra Forest and Granite Rapids) per node and hot-swappable tool-less design. Optimized for density (2U4N) or storage (2U2N), BigTwin® architectures can be more cost effective than standard 1U servers thanks to shared power and cooling while also increasing compute density and reducing overall TCO.
The modular mid-plane design provides NVMe Gen 5 storage controller options and a new riser card design can support up to 4 M.2 drives for boot/OS or metadata/caching.
