AD-ADAM-6317

8AI/ 11DI/ 10DO IoT Modbus/OPC UA Ethernet Remote I/O Module
Anewtech Systems Advantech Modbus/OPC UA Ethernet Remote I/O Module AD-ADAM-6317
  • OPC UA empowers Modbus I/O users to access the industrial IoT world
  • OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
  • Hardware and software double security levels to prevent being hacked
  • Cost-effective: high I/O density and daisy-chaining solution saves cost
Datasheet
AD-ADAM-6317.pdf
Product Specification
Anewtech-Systems-Remote-Industrial-OPC-UA-IO-Module-ADAM-6300-Advantech
ModelADAM-6317-A1
Analog Input
Channels8 differential
Resolution(Bits)16-bit with ±0.1% FSR accuracy @25°C for voltage input,
16-bit with ±0.2% FSR accuracy @25°C for current input
Input Range±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V
Sampling Rates(S/s)10 or 100 (sum)
Isolated Digital Input
Channels11
Input VoltageDry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolation Protection2,500 VDC
Isolated Digital Output
Channels10
Isolation Protection2,500 VDC
Output TypeSink
Sink Current100 mA max./channel

Application: Energy Storage



Battery storage rack systems play an important role in integrating and accelerating renewable energy deployment. Remote I/O solution allows you to take full advantage of on-site generated energy.
Anewtech-Systems-battery-storage-system-Advantech-ADAM-6317


Secure Cloud I/O

Why Secure Cloud I/O Series ?

Achieve cross-site device management with key benefits including

  • Effortless Cross-Site Management: Unified utility for cross-site device management with MQTT-based cloud integration.
  • Secure Communication: Features include X.509 certificates, TLS, cipher suites, IP/MAC allow listing, protocol control, and connection diagnostics.
  • Efficient OTA Deployment: Group-based firmware, configuration, and certificate updates.
  • Convenient I/O Control: Periodic I/O updates, alarm notifications, WDT, and safety value settings
Anewtech-Systems-Remote-IO-Module-Advantech-cloud-io-module

Combined with Intelligent I/O

  • Supports GCL, P2P, RESTful API, SNMP
  • Supports Modbus, ASCII, MQTT
  • Directly links SCADA and accelerate cloud IT/OT convergence with OPC UA (ADAM-6300)
  • Compliance with IEC 62443-4-2 (ADAM-6300)
  • Data stream function to push data
  • Supports HTML5-enabled Web server, JavaScript, XML
  • Supports Daisy Chain and auto-bypass protection (ADAM-6200/ADAM-6300)
Anewtech-Systems-Remote-IO-Module-Advantech--ADAM-6015

ADAM-6000 Series

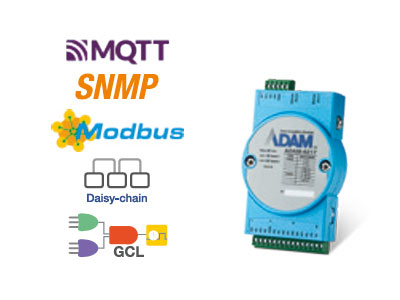

Anewtech-Systems-Remote-IO-Module-Advantech-ADAM-6217

ADAM-6200 Series

Anewtech-Systems-Remote-IO-Module-Advantech-ADAM-6315

ADAM-6300 Series
