AD-ADAM-6350
18DI/18DO IoT Modbus/OPC UA Ethernet Remote I/O Module
- OPC UA empowers Modbus I/O users to access the industrial IoT world

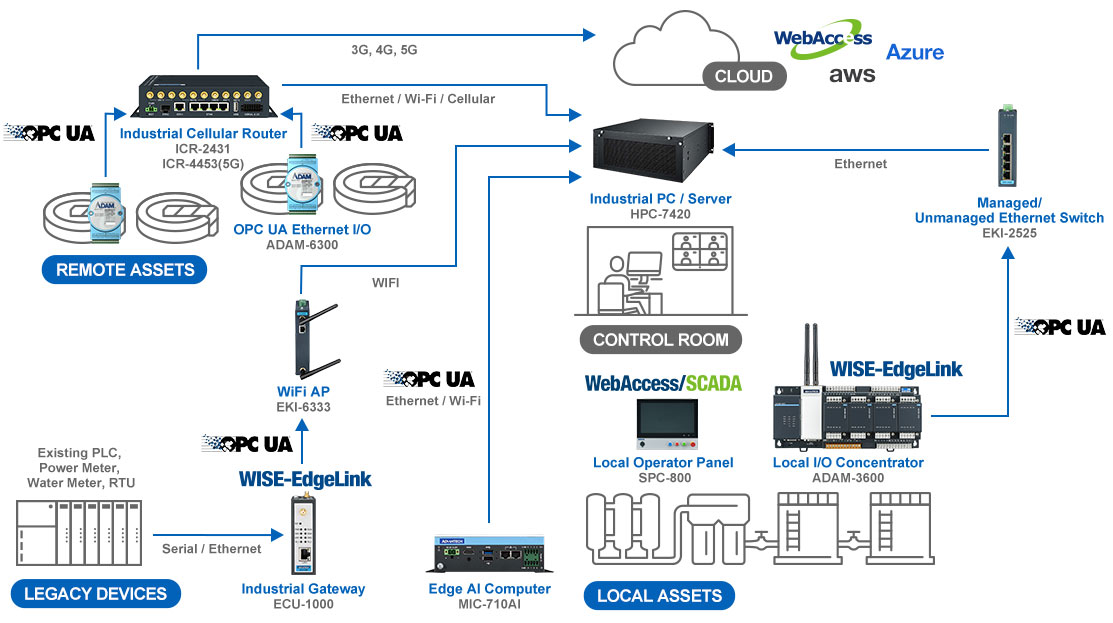

- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution saves cost
Datasheet
Product Specification
| Model | ADAM-6350-A1 |
| Isolated Digital Input | |
| Channels | 18 |
| Input Voltage | Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC |
| Isolation Protection | 2,500 VDC |
| Isolated Digital Output | |
| Channels | 18 |
| Isolation Protection | 2,500 VDC |
| Output Type | Sink |
| Sink Current | 100 mA max./channel |
Secure Cloud I/O
Why Secure Cloud I/O Series ?
Achieve cross-site device management with key benefits including
- Effortless Cross-Site Management: Unified utility for cross-site device management with MQTT-based cloud integration.
- Secure Communication: Features include X.509 certificates, TLS, cipher suites, IP/MAC allow listing, protocol control, and connection diagnostics.
- Efficient OTA Deployment: Group-based firmware, configuration, and certificate updates.
- Convenient I/O Control: Periodic I/O updates, alarm notifications, WDT, and safety value settings
Combined with Intelligent I/O
- Supports GCL, P2P, RESTful API, SNMP
- Supports Modbus, ASCII, MQTT
- Directly links SCADA and accelerate cloud IT/OT convergence with OPC UA (ADAM-6300)
- Compliance with IEC 62443-4-2 (ADAM-6300)
- Data stream function to push data
- Supports HTML5-enabled Web server, JavaScript, XML
- Supports Daisy Chain and auto-bypass protection (ADAM-6200/ADAM-6300)
ADAM-6000 Series
ADAM-6200 Series
ADAM-6300 Series
- ADAM-6315: 8 RTD/ 6DI/ 8DO
- ADAM-6317: 8AI/ 11DI/ 10DO
- ADAM-6350: 18DI/ 18DO
- ADAM-6360D: 8SSR/ 14DI/ 6DO
- ADAM-6366: 6Relay/ 18DI/ 6DO
