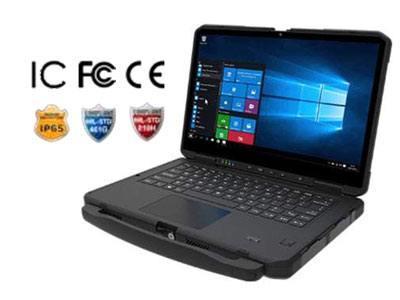

WM-L140AD-3

13.3-inch Rugged Laptop with Intel® Core™ i5-1235U

Anewtech-Systems-Industrial-Laptop-Rugged-Laptop-WM-L140AD-3
  • 12th Gen. Intel® Processor Family – Alder Lake Processor
  • 13.3” 1920 x 1080 LED panel with direct optical bonding laptop
  • Anti­glare technology for sunlight readability
  • Dual battery with hot­swappable design for whole­day ­work
  • Flip design for quick switching between rugged laptop and rugged tablet modes
  • Magnesium alloy enclosure with double injection for drop protection
  • Integrated smart card reader
Datasheet
Product Specification

Custom Configuration

Anewtech-Systems-Rugged-Laptop-WM-L140AD-3-Winmate
Display
Size13.3 inches
Resolution1920x1080
TypeProjected Capacitive Multi Touch
Panel Brightness500.0 nits
Contrast Ratio1000:1
View Angles89,89,89,89
BondingOptical Bonding for Sunlight Viewability
System Specification
ProcessorIntel Core i5-1235U (up to 4.4GHz)
Memory8GB DDR5 SDRAM
16GB DDR5 SDRAM (Optional)
32GB DDR5 SDRAM (Optional)
Storage256GB M.2 NVMe SSD
512GB M.2 NVMe SSD (Optional)
1TB M.2 NVMe SSD (Optional)
2TB M.2 NVMe SSD (Optional)
2nd storage available with up to 2TB M.2 NVMe SSD (Optional)
Smart Card ReaderSmart Card Reader
SecurityTrusted Platform Module (TPM) 2.0
Kensington Lock
Operating SystemWindows 10 IoT Enterprise LTSC (64 bit)
Windows 11 IoT Enterprise SAC (64 bit) (Optional)
WLANSupport
BTSupport
WWAN4G LTE (Optional)
5G (Optional)
GNSSGPS, GLONASS
RFIDHF RFID reader 13.56 MHz (Optional)
Fingerprint ScannerFingerprint scanner (Optional)
Camera
Front Camera2MP front camera
Rear Camera8MP rear camera with autofocus and LED light (Optional)
Mechanical
Dimension340 x 230 x 38 mm
Weight2.5 kg
Cooling SystemFan design
IO Ports
USB Port3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
Serial Port1 x DB9 (RS232 / RS422 / RS485, software switchable)
LAN1 x RJ45-10/100/1000 GigaLAN port
Video1 x HDMI 4K Output (Optional)
Audio1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation
Dual Speaker
SD Card Slot1 x Micro SDXC Slot
SIM Card Slot1 x Nano SIM card slot
Indicator4x LED Indicator for Power, Battery, HDD, RF status
Environment
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature-20°C to 60°C (AC mode), 0°C to 50°C (Battery mode)
Storage Temperature-30°C to 70°C
ShockMIL-STD-810H Method 516.8 Procedure I
VibrationMIL-STD-810H Method 514.8 Procedure I
DropMIL-STD-810H Method 516.8, 3 ft
IP ratingIP65
EMCMIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default)
MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional)
Certification
CertificationCE, FCC
Security Function
SOTI MobiControlSOTI MobiControl Compliance
Kensington LockKensington Lock Support
Control
Button1 x Power, 2 x volume key,
2 x Programmable Function Keys
QWERTY keyboard with RGB backlight
Power
BatteryHot-swappable 2 x 11.55V, typ. 3220 mAh Li-Ion Battery (3S1P)
Battery Operating TimeStandard Battery: 11 hours
Power Rating19V DC
Adapter100-240V, 50-60Hz / 19V DC
Accessory
AccessoryAdapter and Power Cord
Standard Battery
Optional AccessorySpare Battery (Optional)
Battery Charger (Optional)
Vehicle Charger (Optional)

Rugged Laptop : Redefine Smart Industry with Cutting-Edge Features and Durable Design

Rugged Laptop series, available in sizes 13.3”, 14” and 15.6” stands at the forefront of innovation, providing a comprehensive set of features tailored to enhance productivity in the most demanding industrial environments.

  • Diverse Sizes for Every Need
  • Powering Efficiency with Intel® Processor Family
  • Dual Battery with Hot-Swappable Design
  • Flip Design for Seamless Transition
  • Enhanced Durability: IP65 Military-Standard Design
Anewtech-Systems-Industrial-Laptop-Rugged-Laptop-WM-L140AD-3

L140AD-3

13.3”
Intel® Core™ i5-1235U

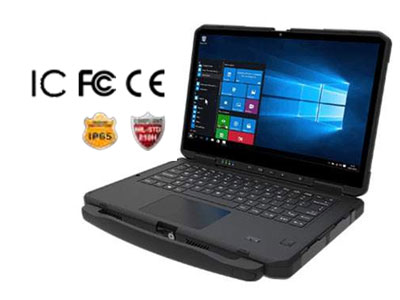

Anewtech-Systems-Industrial-Laptop-Rugged-Laptop-WM-L140AD-4
