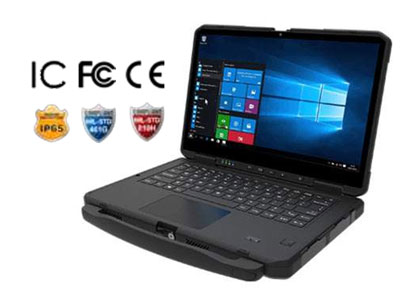

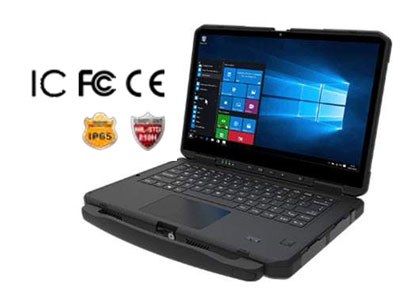

WM-L140AD-4
14-inch Rugged Laptop with Intel® Core™ i5-1235U
- 12th Gen. Intel® Processor Family – Alder Lake Processor
- 14” 1920 x 1080 FHD LED panel with direct optical bonding
- Antiglare technology for sunlight readability
- Dual battery with hotswappable design for wholeday work
- Flip design for quick switching between rugged laptop and rugged tablet modes
- Magnesium alloy enclosure with double injection for drop protection
- Integrated smart card reader
Datasheet
Product Specification
Custom Configuration
| Display | |
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Core i5-1235U (up to 4.4GHz) |
| Memory | 8GB DDR5 SDRAM 16GB DDR5 SDRAM (Optional) 32GB DDR5 SDRAM (Optional) |
| Storage | 256GB M.2 NVMe SSD 512GB M.2 NVMe SSD (Optional) 1TB M.2 NVMe SSD (Optional) 2TB M.2 NVMe SSD (Optional) 2nd storage available with up to 2TB M.2 NVMe SSD (Optional) |
| Smart Card Reader | Smart Card Reader |
| Security | Trusted Platform Module (TPM) 2.0 Kensington Lock |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) Windows 11 IoT Enterprise SAC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Fingerprint Scanner | Fingerprint scanner (Optional) |
| Camera | |
| Front Camera | 2MP front camera |
| Rear Camera | 8MP rear camera with autofocus and LED light (Optional) |
| Mechanical | |
| Dimension | 340 x 230 x 38 mm |
| Weight | 2.5 kg |
| Cooling System | Fan design |
| IO Ports | |
| USB Port | 3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| Serial Port | 1 x DB9 (RS232 / RS422 / RS485, software switchable) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Video | 1 x HDMI 4K Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack Dual Digital Mic With Noise Cancellation Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), 0°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 3 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC, IC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power, 2 x volume key, 2 x Programmable Function Keys QWERTY keyboard with RGB backlight |
| Power | |
| Battery | Hot-swappable 2 x 11.55V, typ. 3220 mAh Li-Ion Battery (3S1P) |
| Battery Operating Time | Standard Battery: 11 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord Standard Battery |
| Optional Accessory | Spare Battery (Optional) Battery Charger (Optional) Vehicle Charger (Optional) |
Durability for harsh environment
Tough exterior:
Rugged laptop has passed the drop test from a meter high and impact resistance with performance assurance according to the US Defence Standard MIL-STD-810H and certified by IP65 ingress protection to ensure no environment is too hazardous for this rugged laptop.
Useable in an outdoor space:
The L140AD-4 is tough enough to withstand repeated drops, extreme temperatures, altitudes, humidity, and water and dust exposure, allowing the rugged laptop to be used in harsh environments for industrial and defence use.
