AS-A126GS-TNBR
DP AMD 10U Server with NVIDIA HGX B200 8-GPU

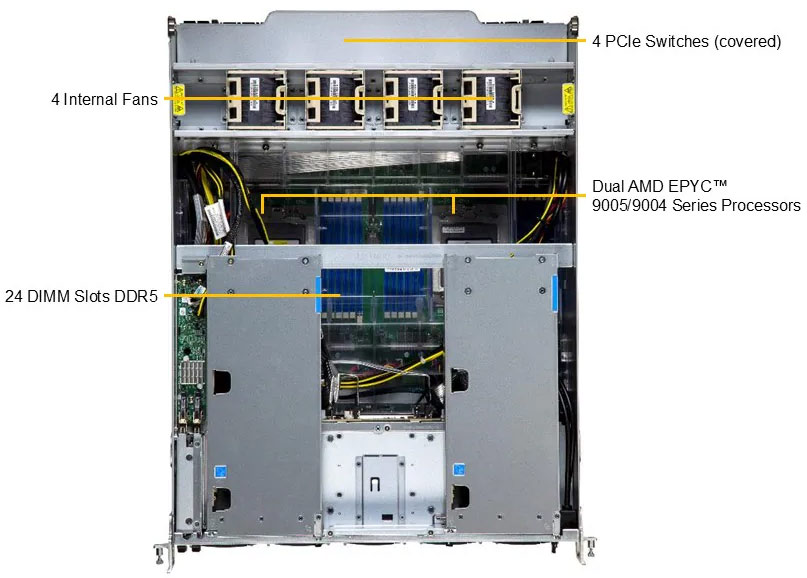

- Dual AMD EPYC™ 9005/9004 Series Processors
- Support 8 onboard SXM GPU accelerator cards, air cooled
- Support up to DDR5 24 DIMM slots (1DPC)
- 2 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
- 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
- 8 front hot-swap 2.5" NVMe + 2 hot-swap 2.5" SATA drive bays
8 E1.S drive bays (optional)
Key Applications
- High Performance Computing
- AI/Deep Learning Training
- Industrial Automation, Retail
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Climate and Weather Modeling
- Finance & Economics
| Product SKUs | A+ Server AS -A126GS-TNBR |
| Motherboard | Super H14DSG-OD |
| Processor | |
| CPU | Dual processor(s) AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs |
| GPU | |
| Max GPU Count | Up to 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Type-A ports(Rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
| Dimensions and Weight | |
| Height | 17.2" (438.8 mm) |
| Width | 17.6" (449 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 25.2" (H) x 49.4" (W) x 27.3" (D) |
| Weight | Gross Weight: 183 lbs (83.1 kg) Net Weight: 122.7 lbs (55.64 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity Network activity LEDs System information (overheat/UID) UID |
| Buttons | Power On/Off UID/ Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| M.2 | 2 M.2 NVMe slots (M-key 22110(default)) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 10 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5" SATA drive bays Option A: Total 8 bays 8 front hot-swap E1.S NVMe* drive bays (*NVMe support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | 19x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 6x 5250W | 6x 5250W Redundant Titanium (certification pending) Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Streamline deployment at scale for AI & LLM
Built on Supermicro's proven AI building-block system architecture, the new 8-GPU system with the latest AMD Instinct™ and NVIDIA HGX™ GPUs streamline deployment at scale for the largest AI models and reduce lead time.
The 8-GPU air-cooled solution is feature maximized and power optimized supporting dedicated I/O and dedicated storage per GPU, full performance GPUs, CPUs, memory, and high-speed networking for large scale cluster deployments. These powerful GPUs enhance operations-per-second and performance-per watt at rack scale.
H14 8-GPU System
Next-Gen Large Scale AI Training Platform
- Industry standard OCP Accelerator Module (OAM) with eight accelerators interconnected on an AMD Instinct™ and NVIDIA HGX™
- Industry-leading up to 2TB HBM3e GPU memory in a single server node
- 1:1 400G networking dedicated for each GPU designed for large scale AI and supercomputing clusters
- Dual Socket AMD EPYC™ 9005/9004 Series Processors
- Up to 24 DIMMs for up to 9 TB of DDR5 6000 memory
