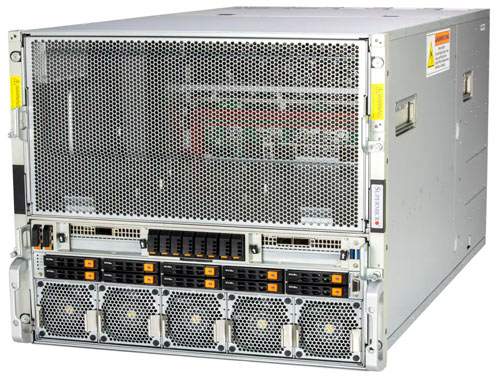

SYS-A22GA-NBRT
DP Intel 10U GPU Server with NVIDIA HGX B200 8-GPU
- Dual Intel® Xeon® 6900 series processors with P-cores, up to 500W TDP, 6UPI
- Support for up to 8 onboard SXM GPU accelerator cards
- 24 DIMM slots, ECC DDR5 designed for up to 6400MT/s (1DPC only)
- 2 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
- 8 PCIe 5.0 x16 LP and 2 PCIe 5.0 x16 FHHL
- 10 PCIe 5.0 NVMe U.2 and 2 NVMe M.2
Key Applications
- AI / Deep Learning
- Scientific Research
- Conversational AI
- Drug Discovery
- High Performance Computing (HPC)
Product Specification
Supermicro
Ready-to-Ship
Gold Series
Pre-Configured Server
Best-Selling Server Platforms,
Pre-Configured with Key Components for Reduced Lead Times
Supermicro 10U B200 Gold Series GPU Server : SYS-A22GA-NBRT-G1
- CPU: 2 x Intel® Xeon® 6960P Processor 72-Core 2.70GHz 432MB Cache (500W)
- Memory: 24 x 96GB DDR5 6400MHz ECC RDIMM Server Memory
- Storage-1: 2 x 1.9TB M.2 PM9A3 NVMe Solid State Drive (Gen 4)
- Storage-2 :4 x 1.9TB 2.5" PM9A3 NVMe PCIe 4.0 Solid State Drive (1 x DWPD)
- GPU: 1 x NVIDIA HGX GPU Baseboard 8 B200 180GB
- AOC: 8 x Supermicro 400-Gigabit MCX75310AAS-NEAT (1 x OSFP) Ethernet Network Adapter
- Aoc-1: 1 x BlueField-3 BF3220 DPU 200GbE Dual Port Crypto Enable
- Onboard network: 1 x 2 RJ45 10Gbase-T Ports
- Service support : 1 x NVIDIA Enterprise Business Standard Support Service For Bluefield-3 (3-Years - Software Support Only)
| Product SKUs | SuperServer SYS-A22GA-NBRT SuperServer SYS-A22GA-NBRT-G1 (Gold Series version with pre-configured components) |
| Motherboard | Super X14DBG-DAP |
| Processor | |
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
| Dimensions and Weight | |
| Height | 17.2" (438.8 mm) |
| Width | 17.6" (449 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 25.2" (H) x 49.4" (W) x 27.3" (D) |
| Weight | Gross Weight: 183 lbs (83.1 kg) Net Weight: 122.7 lbs (55.64 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity Network activity LEDs System information (overheat/UID) UID |
| Buttons | Power On/Off UID/ Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Option A 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110/25110) |
| System Cooling | |
| Fans | 19 counter-rotating 80x80x38mm Fan(s) |
| Power Supply | |
| Power Supply | 6x 5250W Redundant (3 + 3) Titanium (certification pending) Level (96%) power supplies |
| Dimension (WxHxL) | 106.5 x 82.1 x 245.3 mm |
| AC Input | 5250W: 200-240Vac / 50-60Hz |
| +12V | Max: 125A / Min: 0A (200Vac-240Vac) |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
X14 GPU-Optimized: Maximum acceleration for AI Training, LLMs, and Generative AI
Next-generation architecture for the most intensive AI workloads. Dual Intel® Xeon® 6900 series processors with P-cores.
SYS-A22GA-NBRT
10U 8-GPU Air Cooled
NVIDIA SXM: HGX B200 8-GPU (180GB)
10 2.5” NVMe
SYS-822GA-NBRT
8U 8-GPU Air Cooled
NVIDIA SXM: HGX H100 8-GPU (80GB),
HGX H200 8-GPU (141GB)
10 2.5” NVMe
SYS-422GA-NBRT-LCC
4U 8-GPU Liquid Cooled
NVIDIA SXM: HGX B200 8-GPU (180GB)
8 2.5” NVMe
10U
Air-Cooled Rack Configuration
The new air-cooled 10U NVIDIA HGX B200 system features a redesigned chassis with expanded thermal headroom to accommodate eight 1000W TDP Blackwell GPUs. Up to 4 of the new 10U air-cooled systems can be installed and fully integrated in a rack, the same density as the previous generation, while providing up to 15x inference and 3x training performance.
All Supermicro NVIDIA HGX B200 systems are equipped with a 1:1 GPU-to-NIC ratio supporting NVIDIA BlueField®-3 or NVIDIA ConnectX®-7 for scaling across a high-performance compute fabric.
10U 8-GPU System
SYS-A22GA-NBRT / AS-A126GS-TNBR/ SYS-A21GE-NBRT
| Overview | 10U Air-cooled System with NVIDIA HGX B200 8-GPU |
|---|---|
| CPU |
|
| Memory |
|
| GPU | NVIDIA HGX B200 8-GPU (180GB HBM3e per GPU) 1.8TB/s NVLink GPU-GPU interconnect with NVSwitch |
| Networking | 8 single-port NVIDIA ConnectX®-7 NICs or NVIDIA BlueField®-3 SuperNICs Up to 400Gbps 2 dual-port NVIDIA BlueField®-3 DPUs |
| Storage | 10 front hot-swap 2.5” NVMe drive bays 2 M.2 NVMe slots |
| Power Supply | 6x 5250W redundant Titanium Level power supplies |
Intel Xeon 6 Processor Details
The latest Intel Xeon family of CPUs, the Intel Xeon 6 processors with E-cores, is designed to bring maximum performance per watt to the market for cloud-native and scale-out applications. The high core counts enable large numbers of applications or existing multi-core applications to run on a single CPU and even more in dual processor systems. Intel Xeon 6 processors are designed to be socket compatible within the same platform.
X14 Featuring
Intel Xeon 6900 with P-cores
- Up to 128 cores/256 threads per CPU
- Up to 5OOW per CPU
- 1 or 2 socket servers
- 12 memory channels
- Up to 6400 MT/s DDRS
- 8800 MT/s MRDIMMs available
- Up to 96 PCie 5.0 lanes
X14 Featuring
Intel Xeon 6700 with P-cores
- Up to 86 cores/172 threads per CPU
- Up to 350W per CPU
- 1,2,4,8 socket support
- 8 memory channelss
- Up to 6400 MT/s OORS
- 8000 MT/s MROIMMs available
- Up to 88 PCie 5.0 lanes and up to 136 lane for 1 socket systems
X14 Featuring
Intel Xeon 6500 with P-cores
- Up to 32 cores/60 threads per CPU
- Up to 255W per CPU
- 1 or 2 socket systems
- 8 memory channels
- Up to 6400 MT/s DOORS
- Up to 88 PCie 5.0 lanes
X14 Featuring
Intel Xeon 6700 with E-cores
- Up to 144 cores/144 threads per CPU
- Up to 330W per CPU
- 1 or 2 socket servers
- 8 memory channels
- Up to 6400 MT/s ODRS
- Up to 88 PCie 5.0 lanes
