SYS-A21GE-NBRT
DP Intel 10U System with NVIDIA HGX B200 8-GPU and Rear I/O
- Dual 5th/4th Gen Intel® Xeon® Scalable processors
- Support for NVIDIA HGX™ B200 8-GPU
- Up to 32 DIMMs supporting up to 8TB DDR5-4400 in 2DPC or 4TB DDR5-5600 in 1DPC
- Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots

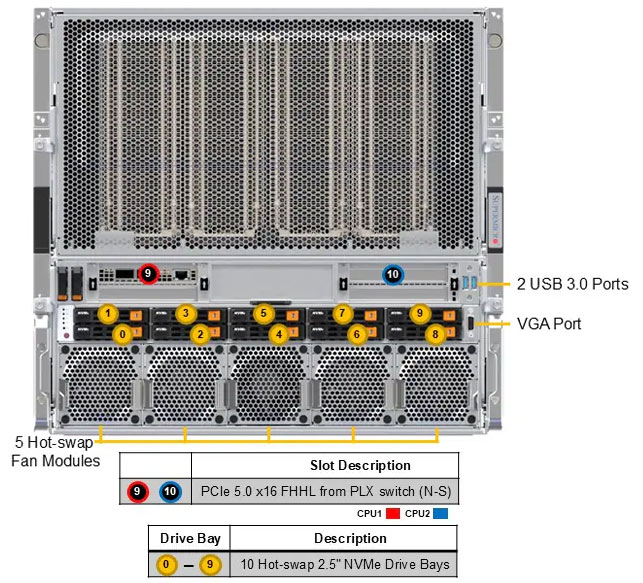

- 10 front hot-swap 2.5" NVMe + 2 front hot-swap M.2
- 2 RJ45 10GbE
- 6 Redundant 5000W Titanium Level power supplies
Key Applications
- High Performance Computing
- AI/Deep Learning Training
- Industrial Automation, Retail
- Healthcare
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Climate and Weather Modeling
- Finance & Economics
Datasheet
Product Specification
| Product SKUs | SuperServer SYS-A21GE-NBRT |
| Motherboard | Super X13DEG-D-P |
| Processor | |
| CPU | Dual Socket E (LGA-4677)5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) |
| Input / Output | |
| USB | 2 USB 3.0 Type-A ports(Front) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoringStatus monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
| Dimensions and Weight | |
| Height | 17.2" (438.8 mm) |
| Width | 17.6" (449 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 25.2" (H) x 49.4" (W) x 27.3" (D) |
| Weight | Gross Weight: 183 lbs (83.1 kg) Net Weight: 122.7 lbs (55.64 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activityNetwork activity LEDs System information (overheat/UID) UID |
| Buttons | Power On/Off UID/ Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID) |
| System Cooling | |
| Fans | 19 heavy duty fans with optimal fan speed control |
| Power Supply | |
| 6x 5000W | 6x 5000W Redundant (3 + 3) Hot-plug power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
10U
Air-Cooled Rack Configuration
The new air-cooled 10U NVIDIA HGX B200 system features a redesigned chassis with expanded thermal headroom to accommodate eight 1000W TDP Blackwell GPUs. Up to 4 of the new 10U air-cooled systems can be installed and fully integrated in a rack, the same density as the previous generation, while providing up to 15x inference and 3x training performance.
All Supermicro NVIDIA HGX B200 systems are equipped with a 1:1 GPU-to-NIC ratio supporting NVIDIA BlueField®-3 or NVIDIA ConnectX®-7 for scaling across a high-performance compute fabric.
10U 8-GPU System
SYS-A22GA-NBRT / AS-A126GS-TNBR/ SYS-A21GE-NBRT
| Overview | 10U Air-cooled System with NVIDIA HGX B200 8-GPU |
|---|---|
| CPU |
|
| Memory |
|
| GPU | NVIDIA HGX B200 8-GPU (180GB HBM3e per GPU) 1.8TB/s NVLink GPU-GPU interconnect with NVSwitch |
| Networking | 8 single-port NVIDIA ConnectX®-7 NICs or NVIDIA BlueField®-3 SuperNICs Up to 400Gbps 2 dual-port NVIDIA BlueField®-3 DPUs |
| Storage | 10 front hot-swap 2.5” NVMe drive bays 2 M.2 NVMe slots |
| Power Supply | 6x 5250W redundant Titanium Level power supplies |
