Data Center Liquid Cooling with Supermicro Servers Solution

More advanced data center cooling solutions are required to maintain the optimal operating conditions for today’s data centers’ smooth and efficient operation. As the rise of AI and big data requires massive amounts of data processing, heat is a byproduct of the high processing power.

Anewtech Systems Liquid Cooling Server Supermicro Servers Singapore GPU Server AI Training server Storage Server
Anewtecch Systems Liquid Cooling Server immersion Cooling Server Supermicro Server GPU Server Singapore AI Training Server


Advantages of Liquid Cooling

  • Switching from Air Conditioning to More Effective Liquid Cooling Reduces OPEX by more than 40%
  • Liquid Cooling Efficiency Dramatically Improves the PUE of Data Centers for High Performance, High Power CPUs, and GPUs
  • Reduces Costs and Environmental Impact
Anewtech-Systems-Supermicro-Server-Intel-5th-Gen-Xeon-Processor-GPU-Server

Supermicro Liquid Cooling Servers Solution

Liquid cooled solution delivers superior performance and efficiency for large scale AI and cloud scale infrastructure.

Solution Guide


Anewtech-Systems-Supermicro-Liquid-Cooling-Servers-Solution-Datasheet

Supermicro Liquid Cooling Servers Solution

Accelerate time-to-deployment with plug-and-play liquid-cooled total solutions

Datasheet

Anewtech-Systems-Supermicro-Liquid-Cooling-Servers-Rack-Solution-Bochure

Supermicro Rack Scale Liquid Cooling Solutions

Accelerate time-to-delivery of plug-and-play liquid cooled racks with proven quality and reliability

Brochure



Types of Liquid Cooling

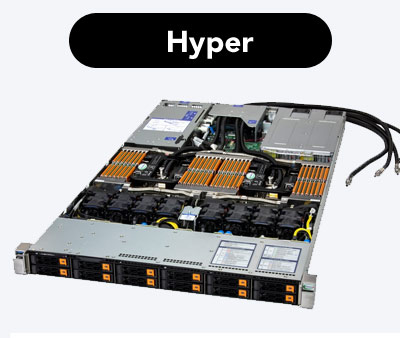

Anewtech-Systems-Supermicro-Liquid-Cooled-Servers-direct-to-chip

Direct To Chip

Liquid passes directly on the surface of a chip and draws heat away. The liquid is then cooled through a liquid to liquid heat exchanger, either contained within the rack or externally.

Anewtech-Systems-Supermicro-Liquid-Cooled-Servers-immersion-cooling

Immersive Cooling

The entire system is immersed in a liquid which cools all components. The warm liquid is then chilled and brought back into the tank.

Anewtech-Systems-Supermicro-Liquid-Cooled-Servers-rear-heat-exchanger

Rear Door Heat Exchanger

The rear door of a rack contains several fans that draw hot air away from the servers and cool the air before the air is returned to the data centre. The cooling liquid is then chilled externally to the door.



Benefits of Differing Liquid Cooling Options

Method of CoolingDirect To ChipImmersionRear Door Heat Exchanger
Primary BenefitRange of Servers can be usedMost EfficientLeast Disruptive
Secondary BenefitLower fan speed, noiseLowest/No NoiseCan be installed later

Liquid cooling is becoming a critical technology that will be needed as CPUs and GPUs run faster and hotter. Removing the heat generated by the latest generation of CPUs and GPUs reduces compute jitter and reduces OPEX for data center operators. While there is an initial upfront investment, the savings over the life of a server or storage system will exceed the original costs. Next-generation processors are expected to consume even more power and produce more heat than today's high-end processors. As HPC and AI move into mainstream corporate workloads, Liquid Cooling solutions will play an even more significant role in adopting these new technologies.



Liquid Cooling Key Components



Coolant Distribution Unit (CDU)
Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-Coolant-Distribution-Unit-CDU

Supermicro CDU contains 1+1 redundant hot-swappable pump systems that circulated the coolant to cold plates cooling down CPUs and GPUs heat. The CDU cooling capacity is up to 100kW enabling extremely high rack densities.

CPU/GPU Cold Plate
Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-CPU-GPU-Cold-Plate

Cold plates are placed on top of CPUs and GPUs to cool down chips efficiently by letting coolant flowing through micro channels in the cold plate.

Coolant Distribution Manifold (CDM)
Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-Coolant-Distribution-ManifoldCDM

CDM are the distribution pipes that supply coolant to each server and collect the hotter coolant back to the CDU.



Rack-Scale Liquid Cooling Solutions: Superior Cooling, Density, and Sustainability



Supermicro liquid cooling solution can reduce OPEX by up to 40%, and allow data centers to run more efficiently with lower PUE. Supermicro has proven liquid cooling deployments at scale and enables data centers operators to deploy the latest and most performance CPUs and GPUs.

Anewtech-Systems-Supermicro--liquid-cooling-server-reduction-Electricity-Cost-data-center Up to 40% REDUCTION
in Electricity Costs for Entire Data Center
Anewtech-Systems-Supermicro--liquid-cooling-server-reduction-server-noise-data-center. Up to 55% REDUCTION
in Data Center Server Noise
Anewtech-Systems-Supermicro--liquid-cooling-server-reduction-Electricity-Cost Up to 89% REDUCTION
in Electricity Costs of Cooling Infrastructure in Server


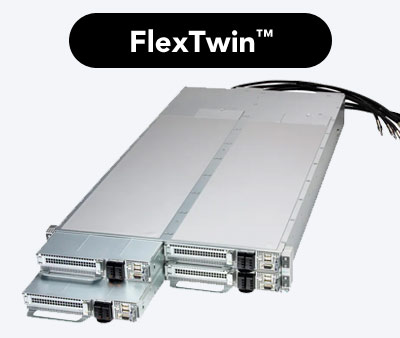

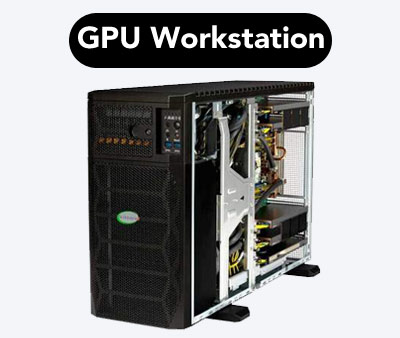

Supermicro Servers Available with Liquid Cooling



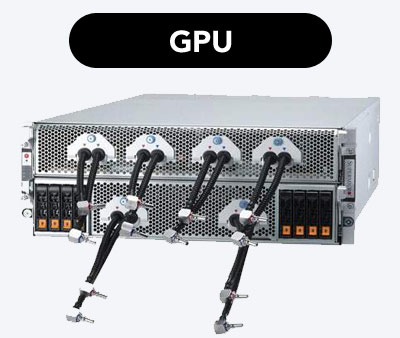

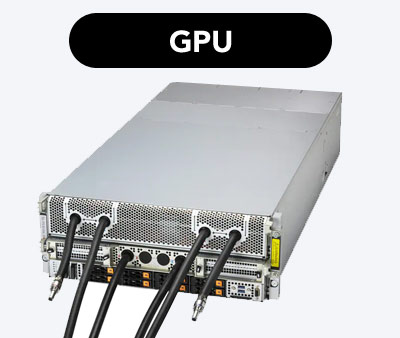

Anewtech-Systems Supermicro Singapore Supermicro Servers Supermicro-Liquid-Cooling-Servver-SYS-421GE-TNHR2-LCC-GPU-Server

SYS-421GE-TNHR2-LCC, AS-4125GS-TNHR2-LCC
4U NVIDIA HGX H100 8-GPU Server

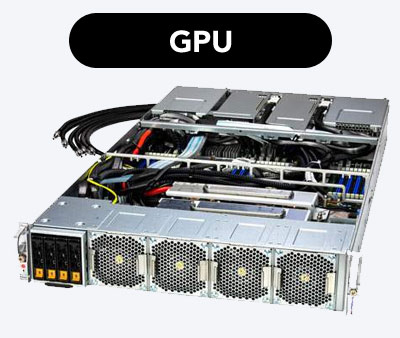

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SYS-221GE-TNHT-LCC-GPU-Server Supermicro Singapore Supermicro Servers

SYS-221GE-TNHT-LCC
2U NVIDIA HGX H100 4-GPU Server

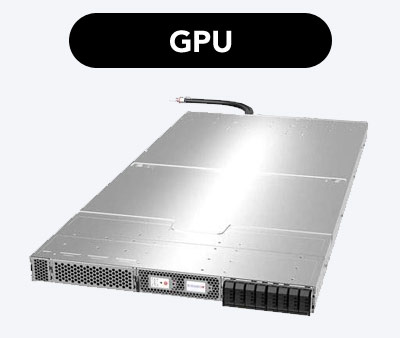

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-ARS-111GL-NHR-LCC-GPU-Server Supermicro Singapore Supermicro Servers

ARS-111GL-NHR-LCC
1U NVIDIA GH200 Grace Hopper Superchip Server

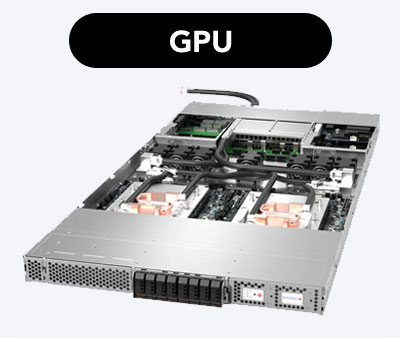

Anewtech-Systems Supermicro Singapore Supermicro Servers Supermicro-Liquid-Cooling-Servver-ARS-111GL-DNHR-LCC-GPU-Server.

ARS-111GL-DNHR-LCC
1U 2-Node NVIDIA GH200 Grace Hopper Superchip Server

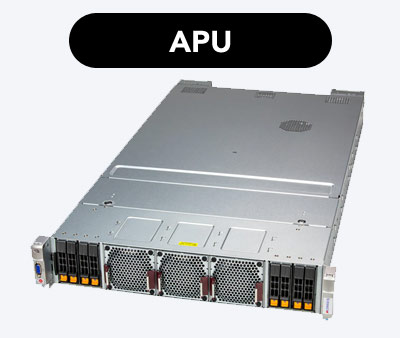

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-AMD-APU-AS-2145GH-TNMR-LCC-GPU-Server

AS-2145GH-TNMR
2U AMD APU Server

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver--SYS-241E-TNRTTP-GPU-Server Supermicro Singapore Supermicro Servers

SYS-241E-TNRTTP
2U Intel® Multi-Processor Server

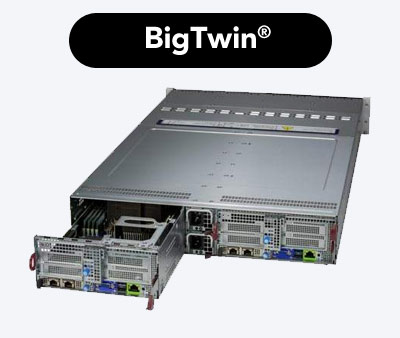

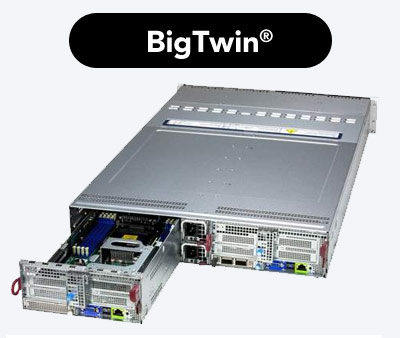

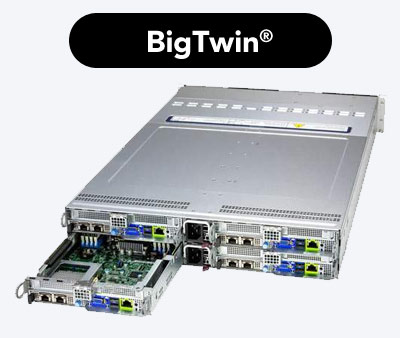

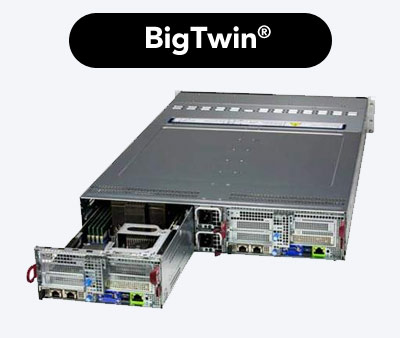

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SYS-221BT-DNTR-Twin-Server Supermicro Singapore Supermicro Servers

SYS-221BT-DNTR

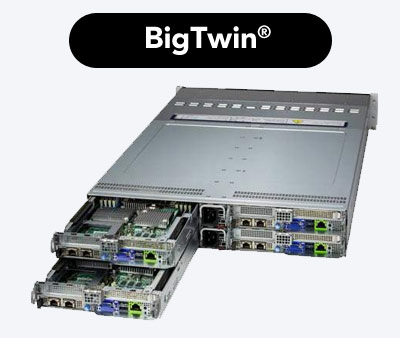

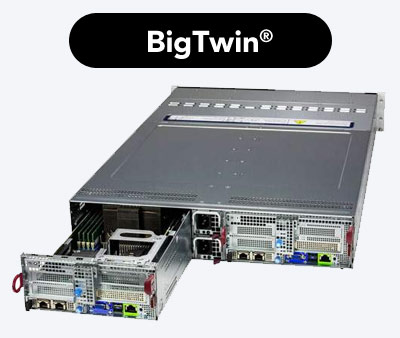

2U2N BigTwin® Server

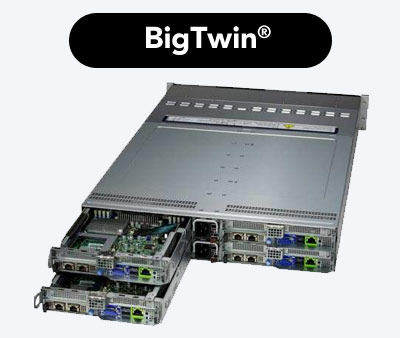

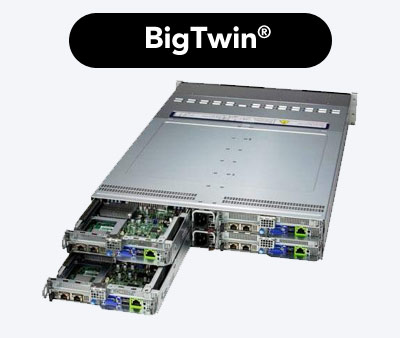

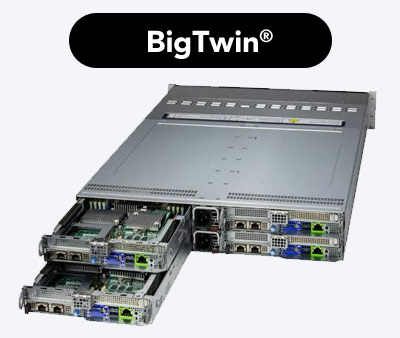

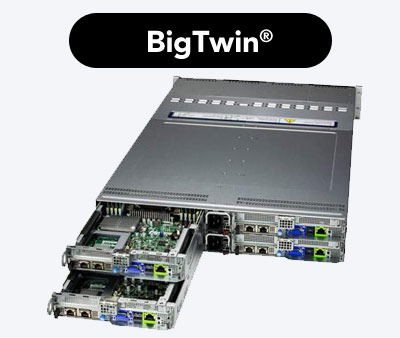

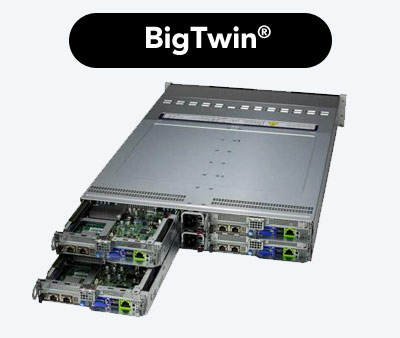

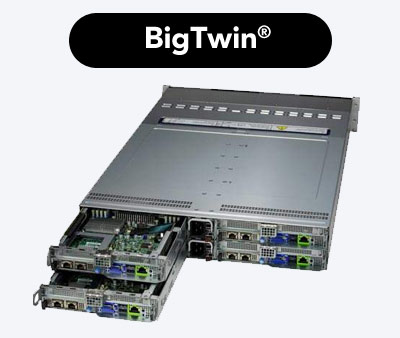

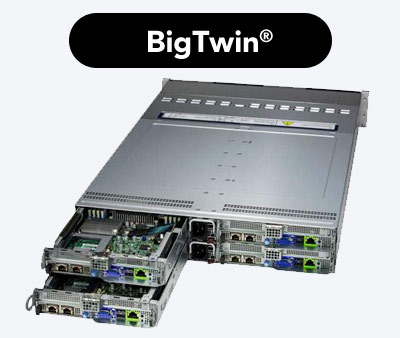

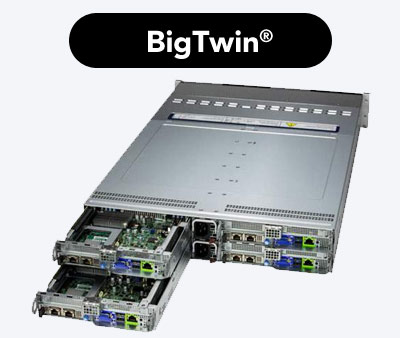

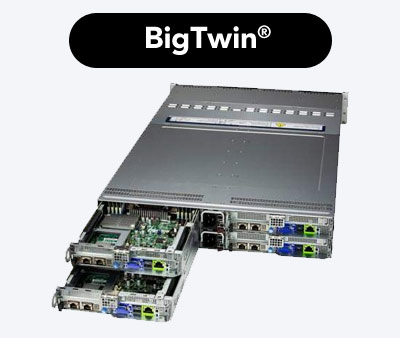

Anewtech-Systems Supermicro Singapore Supermicro Servers Supermicro-Liquid-Cooling-Servver-SYS-221BT-HNTR-Twin-Server

SYS-221BT-HNTR
2U4N BigTwin® Server


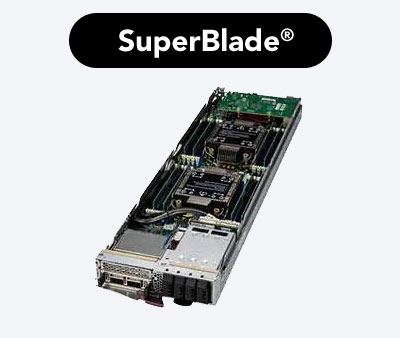

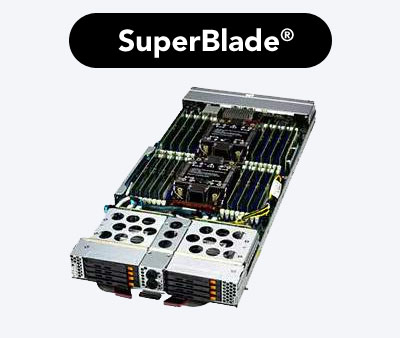

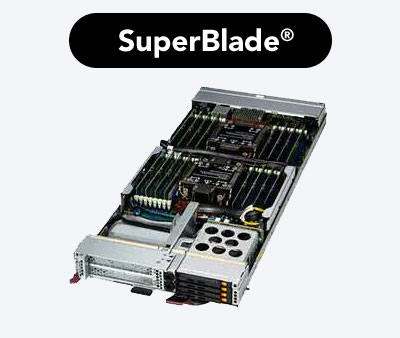

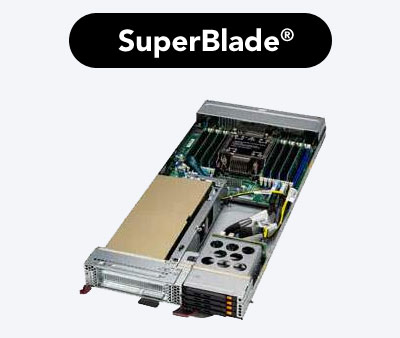

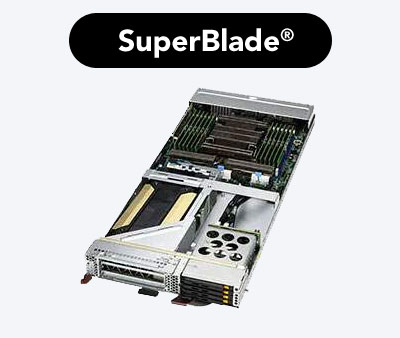

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SBI-421E-1T3N-GPU-Server Supermicro Singapore Supermicro Servers

SBI-421E-1T3N
8U 20N SuperBlade®Server

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SYS-821GE-TNHR-GPU-Server Supermicro Singapore Supermicro Servers

SYS-821GE-TNHR, AS-8125GS-TNHR
8U 8GPU Server

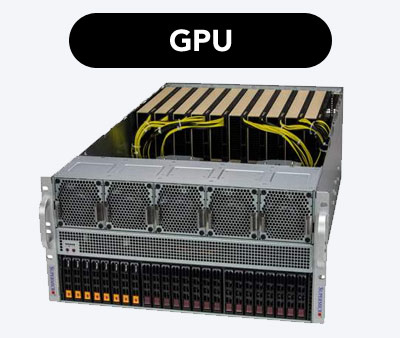

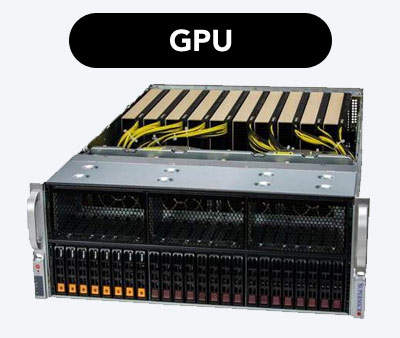

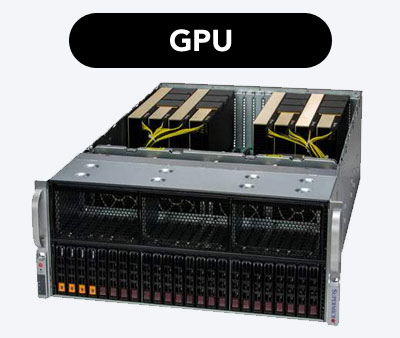

Anewtech-Systems Supermicro Singapore Supermicro Servers Supermicro-Liquid-Cooling-Servver-SYS-421GE-TNR-GPU-Server

SYS-421GE-TNR, AS-4125GS-TNRT
4U PCIe GPU Server

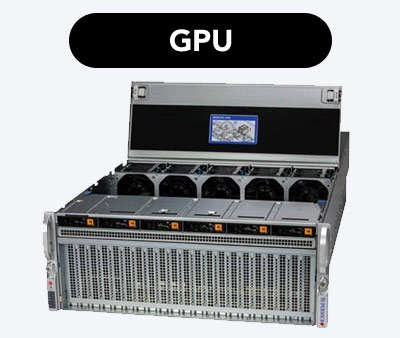

Anewtech-Systems Supermicro Singapore Supermicro Servers Supermicro-Liquid-Cooling-Servver-SYS-421GU-TNXR-Twin-Server

SYS-421GU-TNXR
4U 4GPU Server


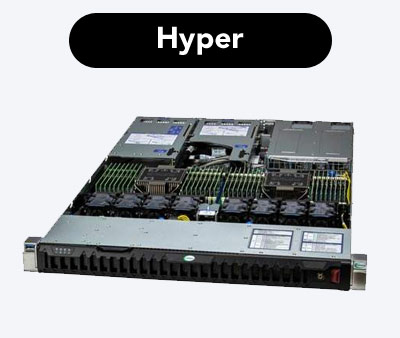

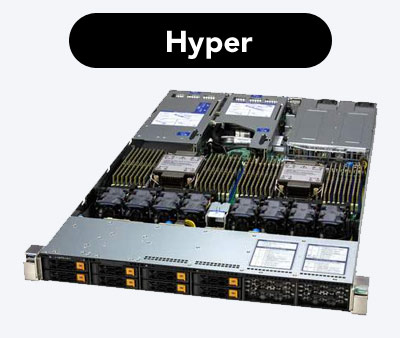

Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SYS-121H-TNR-Rackmount-Server Supermicro Singapore Supermicro Servers

SYS-121H-TNR, AS-1125HS-TNR
1U Hyper Server

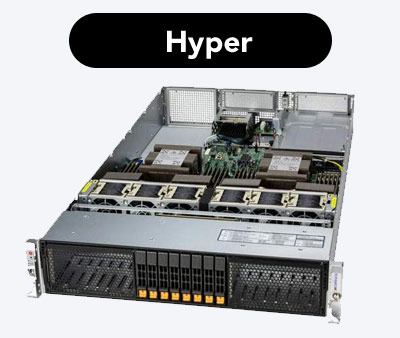

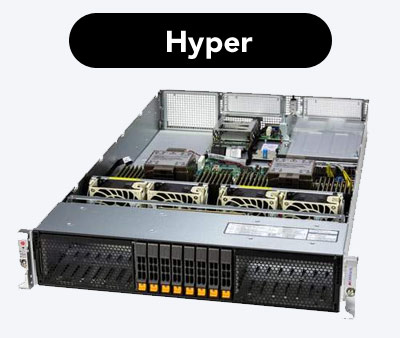

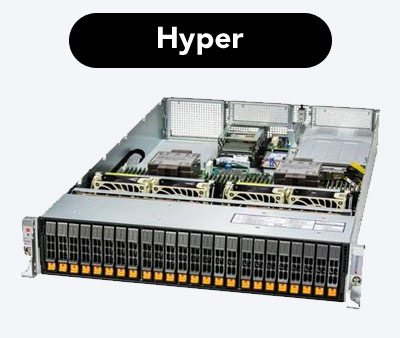

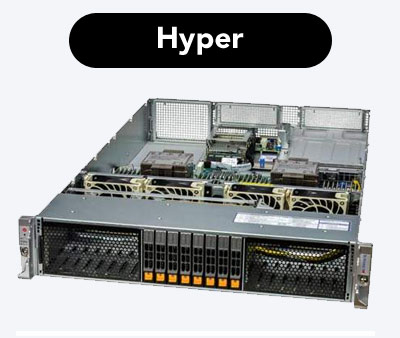

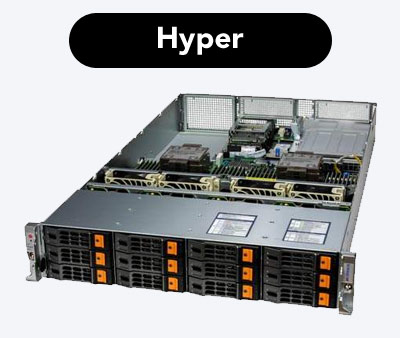

Supermicro Singapore Supermicro Servers Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SYS-221H-TNR-Rackmount-Server

SYS-221H-TNR, AS-2125HS-TNR
2U Hyper Server

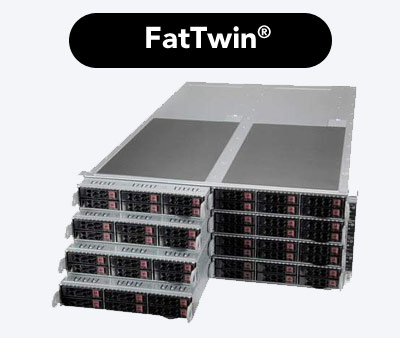

Supermicro Singapore Supermicro Servers Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SYS-F511E2-RT-Twin-Server

SYS-F511E2-RT
4U8N FatTwin® Server

Supermicro Singapore Supermicro Servers Anewtech-Systems-Supermicro-Liquid-Cooling-Servver-SYS-F521E3-RTB-Twin-Server.

SYS-F521E3-RTB
4U4N FatTwin® Server



Supermicro Liquid Cooled 48U Server Rack Configurations



Anewtech-Systems-Supermicro-Liquid-Cooled-Servers-Supermicro-NVIDIA-MGX-Systems-with-GH200

1U Supermicro NVIDIA MGX GPU Server with GH200

ProductQty
Supermicro ARS111GL-DNHR-LCC32
C//products/industrial-server-storage/gpu-server/universal-gpu-server/8125gs-tnhrDU1
Vertical CDM1
Anewtech-Systems-Supermicro-Liquid-Cooled-Servers-8U-Supermicro-NVIDIA-HGX-8-GPU-Server

8U Supermicro NVIDIA HGX 8-GPU Servers

ProductQty
SYS-821GE-TNHR (Intel)
AS-8125GS-TNHR (AMD)
4
CDU1
Vertical CDM1
Horizontal CDM4
Anewtech-Systems-Supermicro-Liquid-Cooled-Servers-4U-Supermicro-NVIDIA-HGX-8-GPU-Server

4U Supermicro NVIDIA HGX 8-GPU Servers

ProductQty
SYS-421GE-TNHR2-LCC (Intel)
AS-4125GS-TNHR2-LCC (AMD)
8
CDU1
Vertical CDM1
Horizontal CDM8
Anewtech-Systems-Supermicro-Liquid-Cooled-Servers-Supermicro-Blade-Server

Supermicro Blade Servers

ProductQty
SuperBlade® Enclosure4
SuperBlade® Blade SBI-421E-1T3N80
CDU1
Vertical CDM1
Horizontal CDM8

(Note: not all components listed. Configurations may vary)
